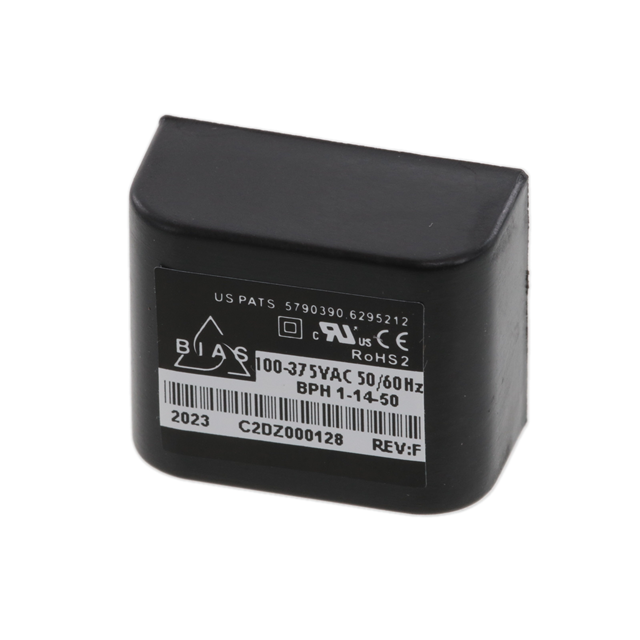

BPH1-14-50
ActiveCita Technologies, LLC.
AC/DC CONVERTER 14V 5V 747MW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BPH1-14-50
ActiveCita Technologies, LLC.
AC/DC CONVERTER 14V 5V 747MW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BPH1-14-50 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus |
| Current - Output (Max) | 28 mA, 71 mA |
| Efficiency | 70 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 7-DIP Module |
| Power (Watts) | 747 mW |
| Size / Dimension [x] | 27.9 mm |
| Size / Dimension [x] | 1.1 " |
| Size / Dimension [y] | 0.92 " |
| Size / Dimension [y] | 23.2 mm |
| Size / Dimension [z] | 0.55 in |
| Size / Dimension [z] | 14 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 375 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output 1 | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.91 | |
Description
General part information
BPH1-14-50
Enclosed AC DC Converters 2 Output 14V 28mA, 71mA 100 ~ 375 VAC Input
Documents
Technical documentation and resources
