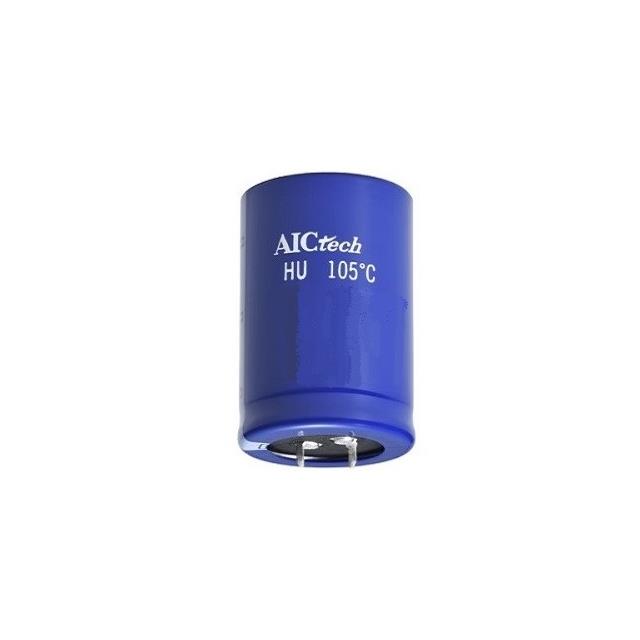

HU2W331MCZS3WPEC
ActiveAIC tech Inc.
CAP ALUM 330UF 20% 450V SNAP TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HU2W331MCZS3WPEC
ActiveAIC tech Inc.
CAP ALUM 330UF 20% 450V SNAP TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HU2W331MCZS3WPEC |
|---|---|
| Applications | General Purpose |
| Capacitance | 330 µF |
| ESR (Equivalent Series Resistance) | 310 mOhm |
| Height - Seated (Max) [Max] [z] | 1.181 " |
| Height - Seated (Max) [Max] [z] | 30 mm |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current @ Low Frequency | 1.49 A |
| Size / Dimension [diameter] | 30 mm |
| Size / Dimension [diameter] | 1.181 inches |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.24 | |
| 10 | $ 8.87 | |||
| 50 | $ 7.48 | |||
| 100 | $ 7.04 | |||
| 500 | $ 6.29 | |||
| 1000 | $ 6.21 | |||
Description
General part information
HU2W331MCZS3WPEC
330 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 310mOhm @ 100Hz 2000 Hrs @ 105°C
