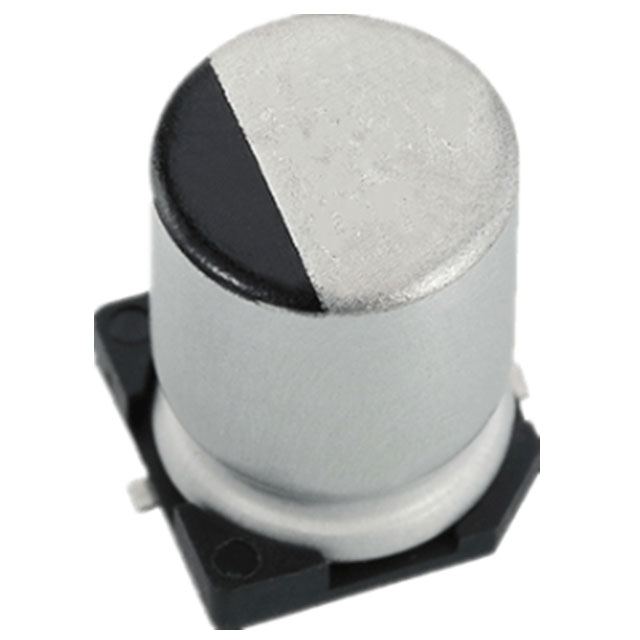

UT106M050HEHTA
ActiveAillen
CAP ALUM 10UF 20% 50V SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UT106M050HEHTA
ActiveAillen
CAP ALUM 10UF 20% 50V SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UT106M050HEHTA |
|---|---|
| Applications | General Purpose |
| Capacitance | 10 µF |
| Height - Seated (Max) [Max] [z] | 5.9 mm |
| Height - Seated (Max) [Max] [z] | 0.232 " |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current @ Low Frequency | 32 mA |
| Size / Dimension [diameter] | 0.248 in |
| Size / Dimension [diameter] | 6.3 mm |
| Surface Mount Land Size [x] | 6.6 mm |
| Surface Mount Land Size [x] | 0.26 in |
| Surface Mount Land Size [y] | 0.26 in |
| Surface Mount Land Size [y] | 6.6 mm |
| Tolerance | 20 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.56 | |
Description
General part information
UT106M050HEHTA
10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
