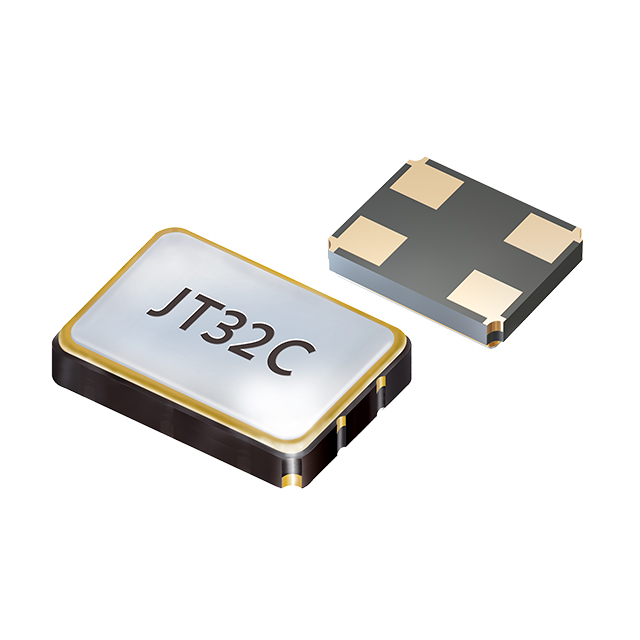

O 32,0-JT32C-A-K-3,3-LF
ActiveJauch Quartz
XTAL OSC TCXO 32.0000MHZ HCMOS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
O 32,0-JT32C-A-K-3,3-LF
ActiveJauch Quartz
XTAL OSC TCXO 32.0000MHZ HCMOS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | O 32,0-JT32C-A-K-3,3-LF |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 10 ÁA |
| Current - Supply (Max) [Max] | 6 mA |
| Frequency | 32 MHz |
| Frequency Stability | 2.5 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 0.043 in |
| Height - Seated (Max) [Max] [z] | 1.1 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.93 | |
| 10 | $ 2.52 | |||
| 50 | $ 2.28 | |||
| 100 | $ 2.18 | |||
| Digi-Reel® | 1 | $ 2.93 | ||
| 10 | $ 2.52 | |||
| 50 | $ 2.28 | |||
| 100 | $ 2.18 | |||
| Tape & Reel (TR) | 500 | $ 1.67 | ||
| 1000 | $ 1.60 | |||
| 1500 | $ 1.56 | |||
| 2500 | $ 1.56 | |||
Description
General part information
O 32,0-JT32C-A-K-3,3-LF
32 MHz TCXO HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Documents
Technical documentation and resources
