Technical Specifications
Parameters and characteristics for this part
| Specification | IPS12-S4PO68-A12 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Brass |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M12 |
| Sensing Distance | 4 mm |
| Sensing Distance | 0.157 in |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IPS12-S4PO68-A12

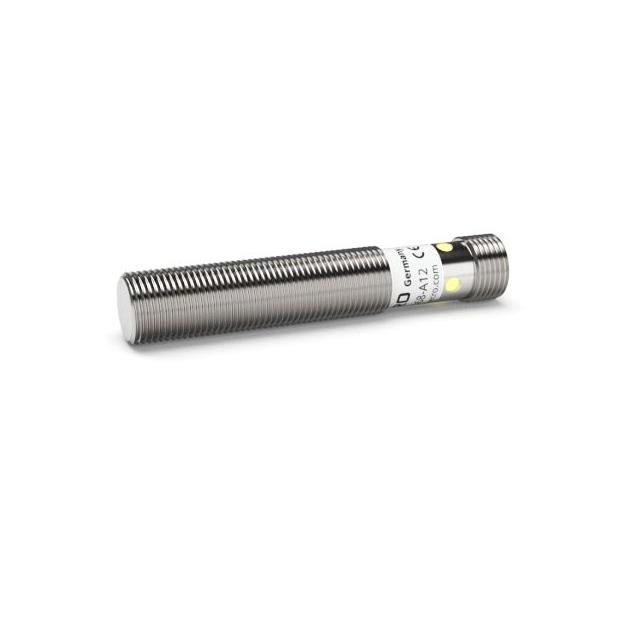

Inductive Proximity Sensor 0.157" (4mm) IP67 Cylinder, Threaded - M12
