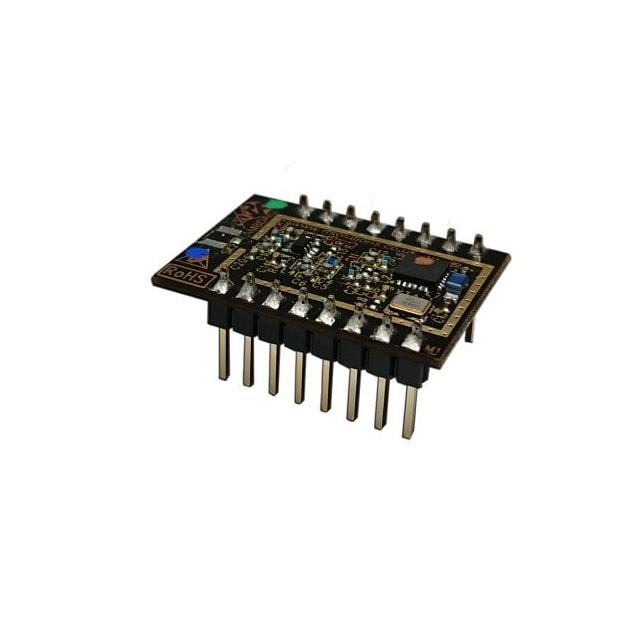

LAMBDA68-8D
ActiveRF SOLUTIONS
RF TRANSCEIVER, 868MHZ, -148DBM, DIP ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | LAMBDA68-8D |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Transmitting [Max] | 118 mA |
| Current - Transmitting [Min] | 45 mA |
| Frequency | 868 MHz |
| Modulation | GMSK, FSK, GFSK, MSK |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-DIP Module |
| Power - Output | 22 dBm |
| Protocol | LoRa™ |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -148 dBm |
| Serial Interfaces | SPI |
| Utilized IC / Part | LLCC68 |
| Voltage - Supply [Max] | 3.7 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LAMBDA68-8D
General ISM < 1GHz LoRa™ Transceiver Module 868MHz Antenna Not Included Through Hole
