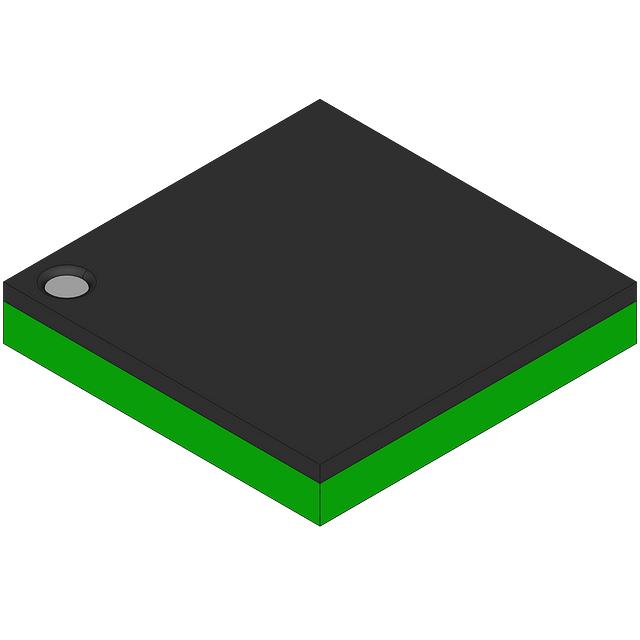

ATMXT224-CCU
ActiveAtmel
MAXTOUCH 224-NODE TOUCHSCREEN CO
Deep-Dive with AI
Search across all available documentation for this part.
ATMXT224-CCU
ActiveAtmel
MAXTOUCH 224-NODE TOUCHSCREEN CO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATMXT224-CCU |
|---|---|
| Interface | I2C |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 49-UFBGA |
| Resolution (Bits) | 12 b |
| Supplier Device Package | 49-UFBGA (5x5) |
| Touchscreen | 2 Wire Capacitive |
| Voltage - Supply | 1.71 V |
| Voltage - Supply [Max] | 3.47 V |
| Voltage - Supply [Min] | 2.57 V |
| Voltage Reference | Internal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 89 | $ 3.40 | |
Description
General part information
ATMXT224-CCU
Touchscreen Controller 2 Wire Capacitive 12 b I2C Interface 49-UFBGA (5x5)
Documents
Technical documentation and resources
No documents available
