Technical Specifications
Parameters and characteristics for this part
| Specification | LA01P085S05 |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 85 A |
| Current - Supply (Max) [Max] | 10 mA |
| For Measuring | AC/DC |
| Frequency [Max] | 400 kHz |
| Frequency [Min] | DC |
| Linearity | 1 % |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module |
| Polarization | Bidirectional |
| Response Time | 1 µs |
| Sensitivity | 25 mV/° |
| Sensor Type | Hall Effect, Open Loop |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information

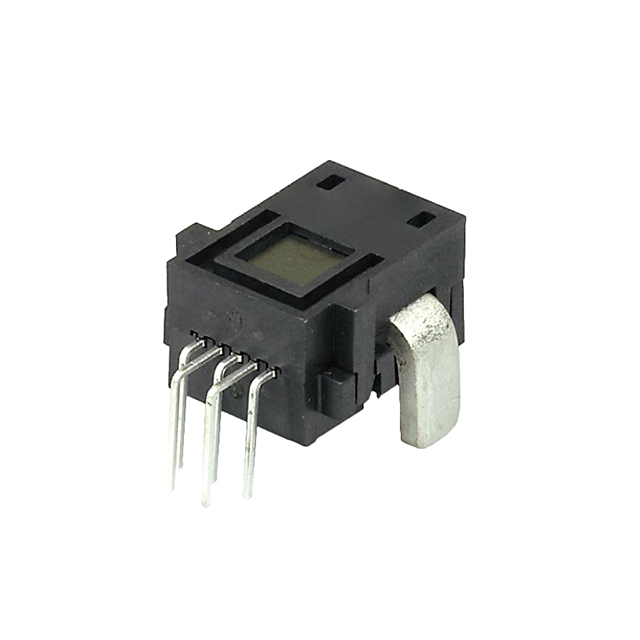

LA01P085S05
Current Sensor 85A 1 Channel Hall Effect, Open Loop Bidirectional Module
