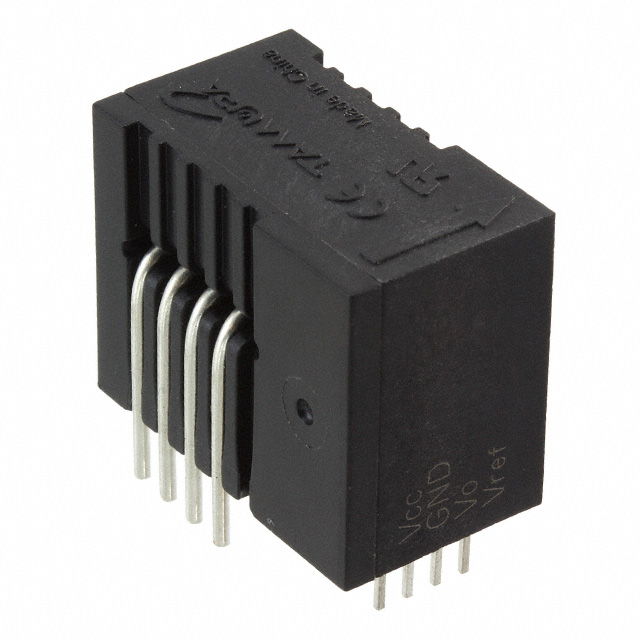

F03P025S05
ObsoleteTamura
SENSOR CURRENT FLUX GATE 25A AC
Deep-Dive with AI
Search across all available documentation for this part.
F03P025S05
ObsoleteTamura
SENSOR CURRENT FLUX GATE 25A AC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | F03P025S05 |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 25 A |
| Current - Supply (Max) [Max] | 35 mA |
| For Measuring | AC |
| Frequency | 300 kHz |
| Linearity | 1 % |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module |
| Polarization | Bidirectional |
| Response Time | 0.3 µs |
| Sensitivity | 25 mV/° |
| Sensor Type | Flux Gate, Closed Loop |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
F03P025S05
Current Sensor 25A 1 Channel Flux Gate, Closed Loop Bidirectional Module
Documents
Technical documentation and resources
No documents available
