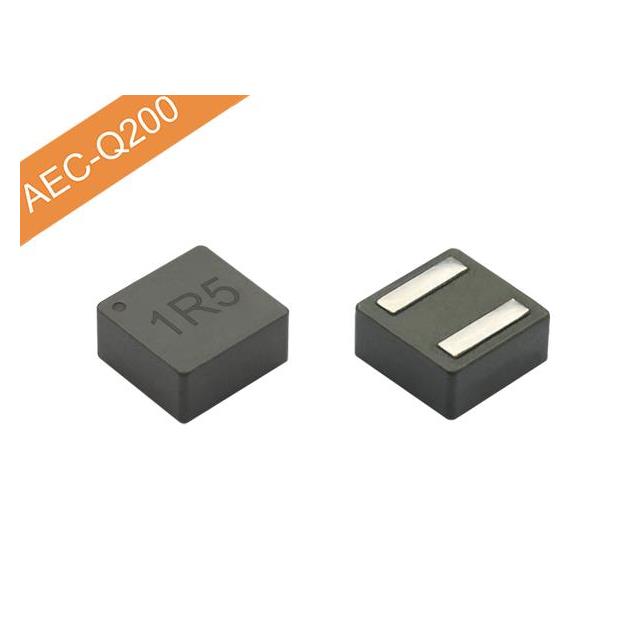

VSEB0630H-1R2MC
ActiveCODACA
FIXED IND 1.2UH 14.4A 6.8MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VSEB0630H-1R2MC |
|---|---|
| Current - Saturation (Isat) | 14.4 A |
| DC Resistance (DCR) [Max] | 6.8 mOhm |
| Features | Molded Inductors, Automotive Grade Power Inductors |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Inductance | 1.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Alloy Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.07 | |
| 10 | $ 1.61 | |||
| 25 | $ 1.45 | |||
| 50 | $ 1.35 | |||
| 100 | $ 1.25 | |||
| 250 | $ 1.13 | |||
| 500 | $ 1.04 | |||
| Digi-Reel® | 1 | $ 2.07 | ||
| 10 | $ 1.61 | |||
| 25 | $ 1.45 | |||
| 50 | $ 1.35 | |||
| 100 | $ 1.25 | |||
| 250 | $ 1.13 | |||
| 500 | $ 1.04 | |||
| Tape & Reel (TR) | 1000 | $ 0.96 | ||
| 2000 | $ 0.89 | |||
| 3000 | $ 0.88 | |||
Description
General part information
VSEB0630H-1R2MC
1.2 µH Shielded Molded Inductor 6.8mOhm Max Nonstandard Molded Inductors, Automotive Grade Power Inductors
