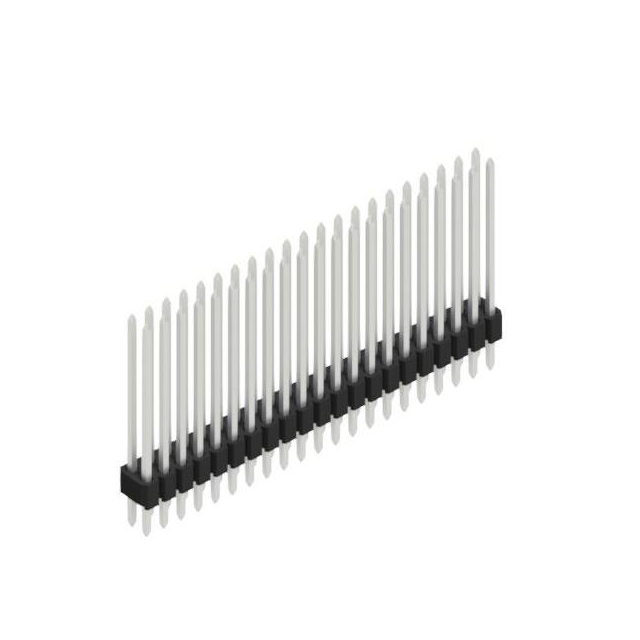

SLV W 4 105 42 Z
ActiveFischer Elektronik GmbH & Co. KG
<UL><LI>TWO ROWS 4-72 CONTACTS</
Deep-Dive with AI
Search across all available documentation for this part.
SLV W 4 105 42 Z
ActiveFischer Elektronik GmbH & Co. KG
<UL><LI>TWO ROWS 4-72 CONTACTS</
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SLV W 4 105 42 Z |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating [Max] | 236.2 µin |
| Contact Finish Thickness - Mating [Max] | 6 µm |
| Contact Finish Thickness - Mating [Min] | 4 µm |
| Contact Finish Thickness - Mating [Min] | 157.5 µin |
| Contact Finish Thickness - Post [Max] | 6 µm |
| Contact Finish Thickness - Post [Max] | 236.2 µin |
| Contact Finish Thickness - Post [Min] | 157.5 µin |
| Contact Finish Thickness - Post [Min] | 4 µm |
| Contact Material | Copper Zinc |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1.5 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 42 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 163 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 3.38 | |
Description
General part information
SLV W 4 105 42 Z
Connector Header Through Hole 42 position 0.050" (1.27mm)
