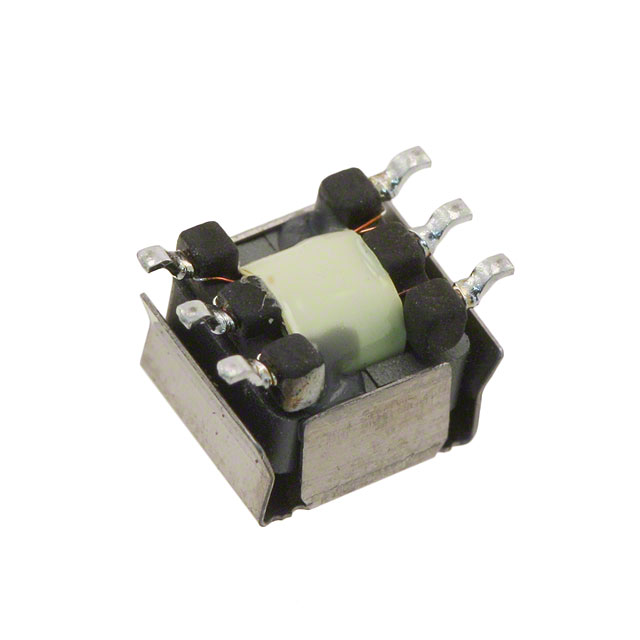

HM42-10002LFTR
UnknownTT Electronics/BI Magnetics
PULSE XFMR 2:1:1 300UH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HM42-10002LFTR
UnknownTT Electronics/BI Magnetics
PULSE XFMR 2:1:1 300UH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HM42-10002LFTR |
|---|---|
| ET (Volt-Time) | 40.4 VµS |
| Height - Seated (Max) [Max] | 0.217 in |
| Height - Seated (Max) [Max] | 5.5 mm |
| Inductance | 300 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 0.26 in |
| Size / Dimension [x] | 6.6 mm |
| Size / Dimension [y] | 8.1 mm |
| Size / Dimension [y] | 0.319 in |
| Transformer Type | Gate Drive |
| Turns Ratio - Primary:Secondary [custom] | 1 |
| Turns Ratio - Primary:Secondary [custom] | 2 CT |
| Turns Ratio - Primary:Secondary [custom] | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.61 | |
| 10 | $ 2.93 | |||
| 25 | $ 2.37 | |||
| 50 | $ 2.22 | |||
| 100 | $ 2.12 | |||
| 250 | $ 2.05 | |||
Description
General part information
HM42-10002LFTR
300µH Gate Drive Pulse Transformer 2:1:1 Surface Mount
