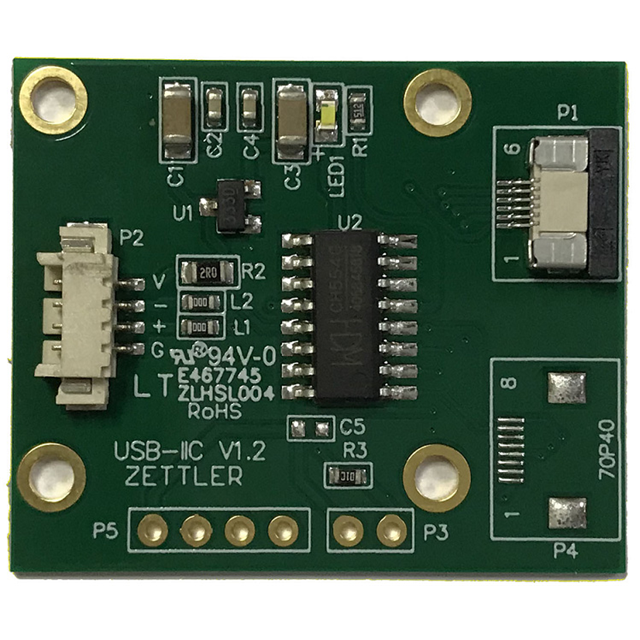

ZEDP1010L19
ActiveAZ Displays
LCD DRIVER BOARD USB 10.1" PCAP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZEDP1010L19
ActiveAZ Displays
LCD DRIVER BOARD USB 10.1" PCAP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZEDP1010L19 |
|---|---|
| Interface | USB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [x] | 36 mm |
| Size / Dimension [x] | 1.42 in |
| Size / Dimension [y] | 30 mm |
| Size / Dimension [y] | 1.18 in |
| Voltage - Input | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 50 | $ 25.38 | |
Description
General part information
ZEDP1010L19
- LCD Driver/Controller 5V USB 1.42" L x 1.18" W (36mm x 30mm)
