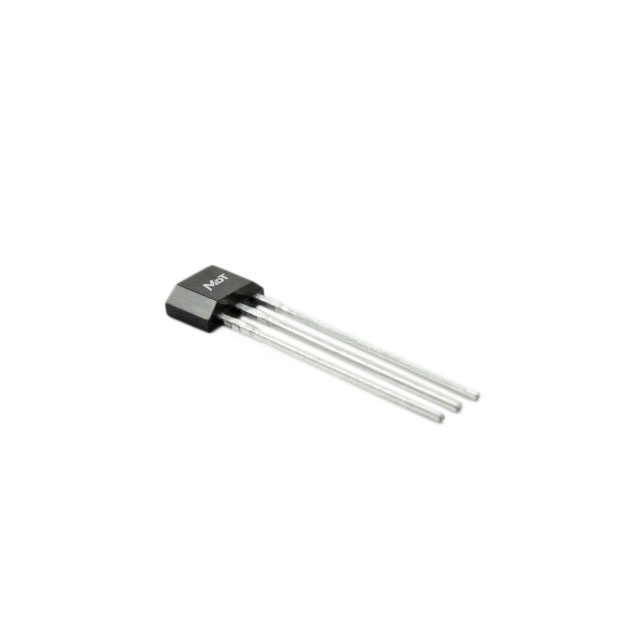

TMR1302HT
ActiveMDT
TMR SENSOR OMNI 17G 1.5UA FAST
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMR1302HT |
|---|---|
| Current - Output (Max) [Max] | 9 mA |
| Current - Supply (Max) [Max] | 1.5 ÁA |
| Features | Temperature Compensated |
| Function | Omnipolar Switch |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Push-Pull |
| Package / Case | TO-92-3 Long Body, TO-226-3 |
| Polarization | South Pole, North Pole |
| Sensing Range | 1 mT, 1.7 mT |
| Supplier Device Package | TO-92S |
| Technology | Magnetoresistive |
| Test Condition | 25 °C |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 0.49 | |
Description
General part information
TMR1302HT
Digital Switch Omnipolar Switch Push-Pull Magnetoresistive TO-92S
