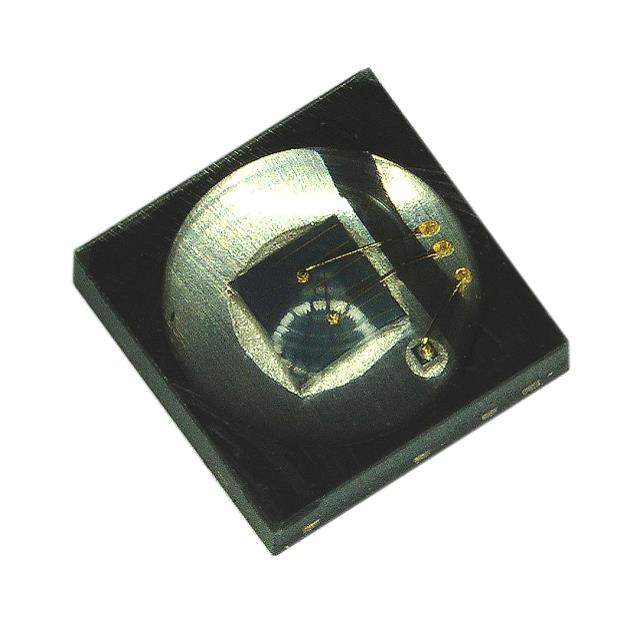

AC3535L-YRR-1000MA
ActiveSolidlite
3535 1000MA 850NM IR LED 150
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AC3535L-YRR-1000MA
ActiveSolidlite
3535 1000MA 850NM IR LED 150
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AC3535L-YRR-1000MA |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 1.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Radiant Intensity (Ie) Min @ If | 175 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 150 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
| Wavelength | 850 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 0.78 | |
| 10 | $ 0.72 | |||
| 100 | $ 0.66 | |||
| 500 | $ 0.58 | |||
Description
General part information
AC3535L-YRR-1000MA
Infrared (IR) Emitter 850nm 3.1V 1.5A 175mW/sr @ 1A 150° 1414 (3535 Metric)
