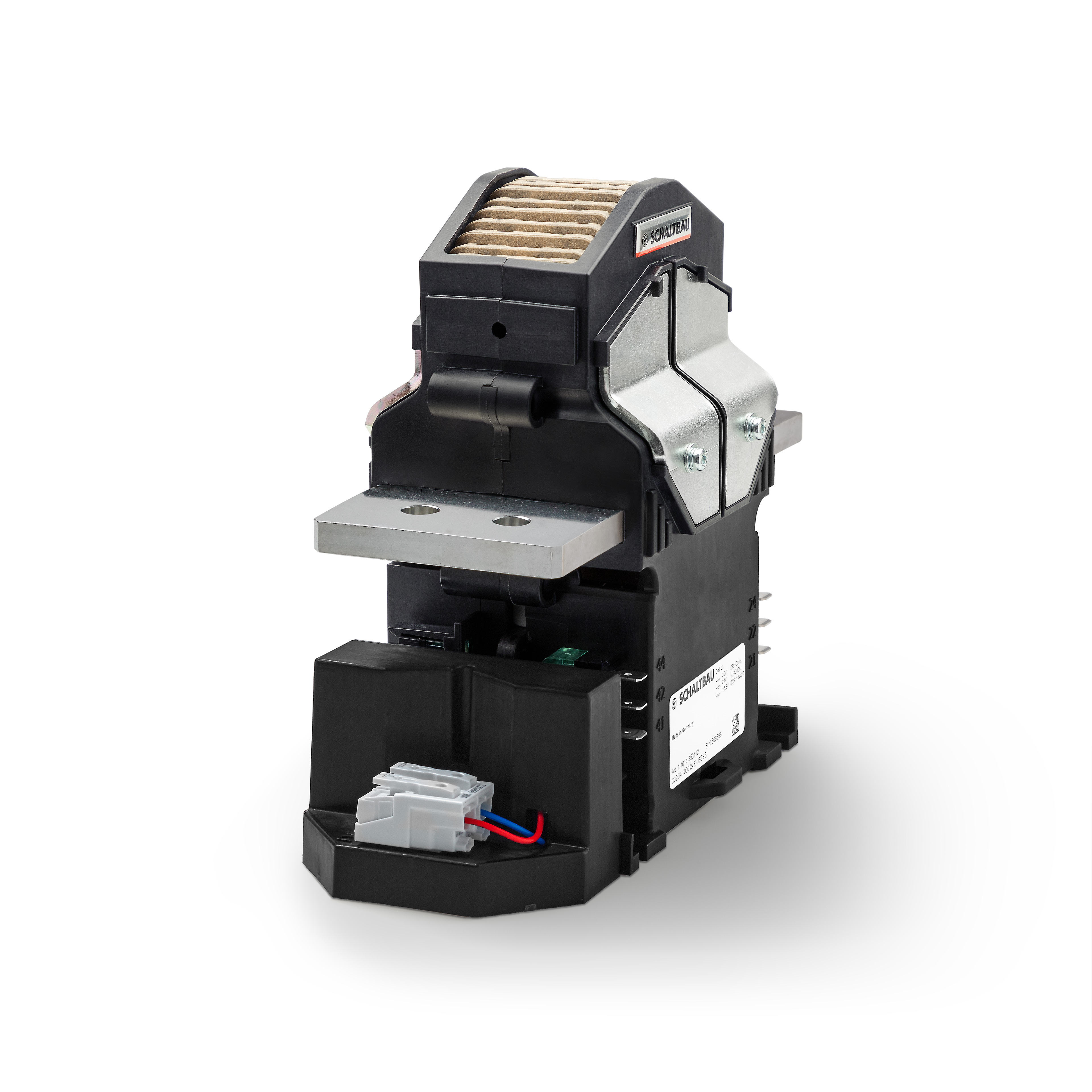

1-1614-356011
ActiveSchaltbau
C320K/1000 1 POLE BI-DIRECT. DC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1614-356011
ActiveSchaltbau
C320K/1000 1 POLE BI-DIRECT. DC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1614-356011 |
|---|---|
| Coil Voltage [Max] | 24 VDC |
| Coil Voltage [Min] | 12 VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 1000 A |
| Features | Auxillary Contacts, Economizer |
| Must Operate Voltage | 16.5 VDC |
| Must Release Voltage | 13.6 VDC |
| Operate Time | 60 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage | 1500 VDC |
| Termination Style | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 826.26 | |
| 10 | $ 814.00 | |||
Description
General part information
1-1614-356011
C320K/1000 1 POLE BI-DIRECT. DC
