240-12-225-0
ActiveIgus

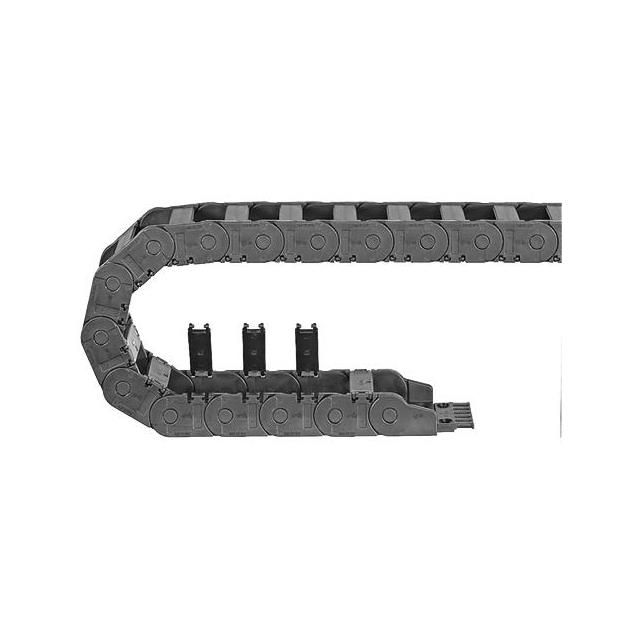

CBLE CARRIER 1.38H X 4.92W 1=1FT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
240-12-225-0
ActiveIgus
CBLE CARRIER 1.38H X 4.92W 1=1FT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 240-12-225-0 |
|---|---|
| Cavity Height | 0.98 in |
| Cavity Height | 24.89 mm |
| Cavity Width [y] | 124.97 mm |
| Cavity Width [y] | 4.92 in |
| Frame Type | Open |
| Link Pitch | 45.97 mm |
| Link Pitch | 1.81 " |
| Loading Side | Inside and Outside Bend |
| Material | Igumid G |
| Minimum Bend Radius [Min] | 225.04 mm |
| Minimum Bend Radius [Min] | 8.86 in |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Outer Height [z] | 35.05 mm |
| Outer Height [z] | 1.38 in |
| Outer Width [x] | 140.97 mm |
| Outer Width [x] | 5.55 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.61 | |
| 25 | $ 24.86 | |||
| 50 | $ 24.12 | |||
| 100 | $ 20.98 | |||
Description
General part information
240-12-225-0
CBLE CARRIER 1.38H X 4.92W 1=1FT
Documents
Technical documentation and resources
