PV6F24011-3R1
ActiveE-Switch
SWITCH PB SPST-NO 2A 48V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PV6F24011-3R1 |
|---|---|
| Actuator Type | Flush, Button, Round |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 2 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | Red, LED, Blue, Green |
| Illumination Voltage (Nominal) | 1.8 VDC, 2.8 VDC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - DC | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 40 | $ 14.93 | |
Description
General part information
PV6F24011-3R1

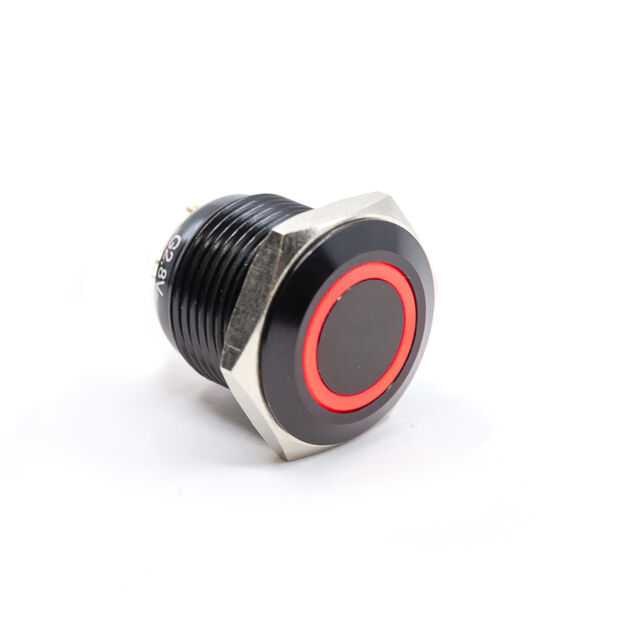

Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
Documents
Technical documentation and resources
No documents available
