SM400608-1
ActiveDB Unlimited

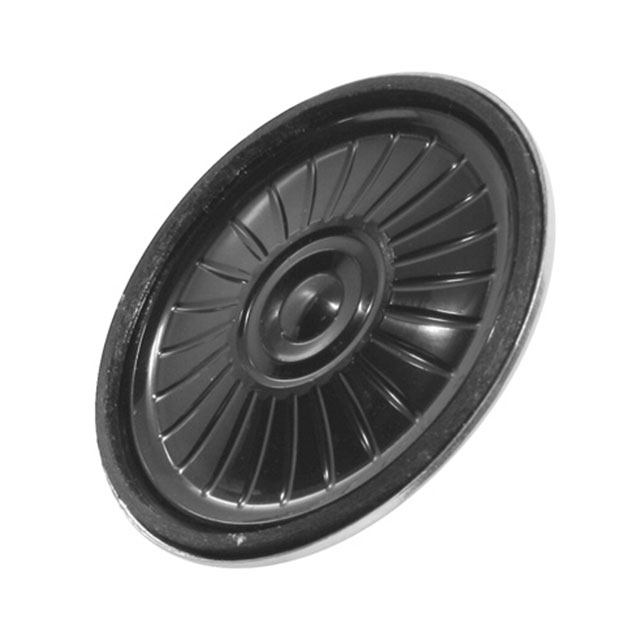

SPEAKER 8OHM 1W TOP PORT 90DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM400608-1
ActiveDB Unlimited
SPEAKER 8OHM 1W TOP PORT 90DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM400608-1 |
|---|---|
| Efficiency - dBA | 90 dBA |
| Efficiency - Testing | 100 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 600 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 600 Hz |
| Height - Seated (Max) [Max] [z] | 5.1 mm |
| Height - Seated (Max) [Max] [z] | 0.201 in |
| Impedance | 8 Ohms |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 1.5 W |
| Power - Rated | 1 W |
| Shape | Round |
| Size / Dimension [diameter] | 1.575 " |
| Size / Dimension [diameter] | 40 mm |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.58 | |
| 10 | $ 3.73 | |||
| 25 | $ 3.44 | |||
| 40 | $ 3.30 | |||
| 80 | $ 3.11 | |||
| 230 | $ 2.83 | |||
| 440 | $ 2.68 | |||
| 945 | $ 2.59 | |||
Description
General part information
SM400608-1
8 Ohms General Purpose Speaker 1 W 600 Hz ~ 20 kHz Top Round
