BC-CGS-334318
ActiveBoxco
BOX PC GRAY 16.929"L X 12.992"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BC-CGS-334318
ActiveBoxco
BOX PC GRAY 16.929"L X 12.992"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BC-CGS-334318 |
|---|---|
| Area (L x W) | 1419 cm˛ |
| Area (L x W) | 220 in˛ |
| Color | Light Gray |
| Container Type | Box |
| Design | Lift-Off Screw Cover |
| Features | Sealing Gasket, Wall Mount, Flame Retardant |
| Height [z] | 180 mm |
| Height [z] | 7.087 in |
| Material | Plastic, Polycarbonate/Fiberglass |
| Material Flammability Rating | UL94 V-0, UL94 5VA, UL94 HB |
| Ratings | NEMA 6, IP66, UL 508A, NEMA 4X, IP67 |
| Size / Dimension [x] | 430 mm |
| Size / Dimension [x] | 16.929 in |
| Size / Dimension [y] | 12.992 in |
| Size / Dimension [y] | 330 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BC-CGS-334318

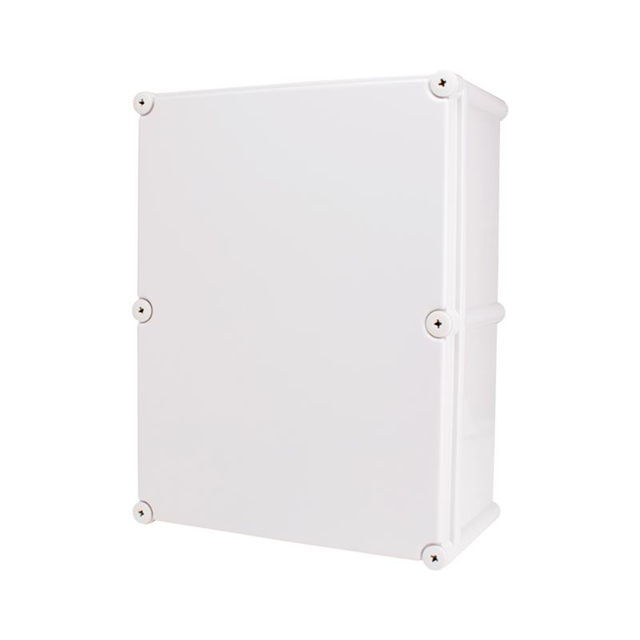

Box Plastic, Polycarbonate/Fiberglass Light Gray Lift-Off Screw Cover 16.929" L x 12.992" W (430.00mm x 330.00mm) X 7.087" (180.00mm)
