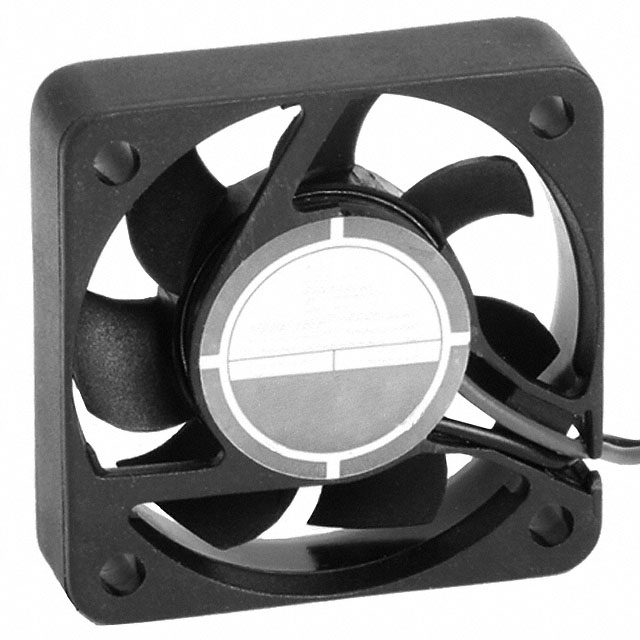

OD4010-24LB01A
ActiveOrion Fans
FAN AXIAL 40X10.5MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
OD4010-24LB01A
ActiveOrion Fans
FAN AXIAL 40X10.5MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OD4010-24LB01A |
|---|---|
| Air Flow | 4.7 CFM |
| Air Flow | 0.132 mł/min |
| Approval Agency | TUV, CE, cURus, UR |
| Bearing Type | Ball |
| Current Rating (Amps) | 30 mA |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach) |
| Lifetime @ Temp. | 60000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 20.1 dB |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 730 mW |
| RPM | 4000 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 17.4 Pa |
| Static Pressure | 0.07 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.4 VDC |
| Voltage Range [Min] | 21.6 VDC |
| Weight | 0.441 lb |
| Weight | 200 g |
| Width [x] | 10.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.47 | |
| 10 | $ 14.76 | |||
| 40 | $ 13.88 | |||
| 80 | $ 13.36 | |||
| 120 | $ 12.30 | |||
| 280 | $ 11.51 | |||
| 520 | $ 11.34 | |||
Description
General part information
OD4010-24LB01A
Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 4.7 CFM (0.132m³/min) 3 Wire Leads
Documents
Technical documentation and resources
No documents available
