169-60551
ActiveHELLERMANNTYTON
CONVOLUTED TUBING, SLIT, 2" DIA,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
169-60551
ActiveHELLERMANNTYTON
CONVOLUTED TUBING, SLIT, 2" DIA,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 169-60551 |
|---|---|
| Abrasion Protection | Abrasion Resistant |
| Diameter - Inside [diameter] | 51.77 mm |
| Diameter - Inside [diameter] | 2.038 in |
| Diameter - Outside [diameter] | 60.66 mm |
| Diameter - Outside [diameter] | 2.388 " |
| Environment Protection | UV Resistant |
| Heat Protection | Heat Resistant |
| Length | 100 ft |
| Length | 30.48 m |
| Liquid Protection | Fluid Resistant |
| Material | Polyethylene (PE) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Type | Protective Hose, Wire Loom |
| Type Attributes | Convoluted, Corrugated |
| Wall Thickness | 0.011 in |
| Wall Thickness | 0.28 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 3.61 | |
Description
General part information
169-60551

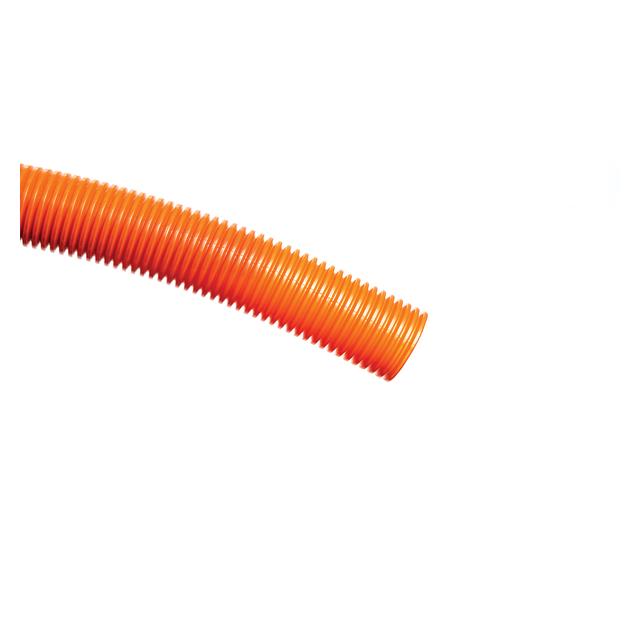

Orange Polyethylene (PE) Convoluted, Corrugated Wire Loom, Protective Hose 2.038" (51.77mm) 100' (30.48m)
Documents
Technical documentation and resources
