SKI06048
ObsoleteSanken Electric USA Inc.
MOSFET N-CH 60V 85A TO263
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKI06048
ObsoleteSanken Electric USA Inc.
MOSFET N-CH 60V 85A TO263
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKI06048 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 85 A |
| Drain to Source Voltage (Vdss) | 60 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 90.6 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 6210 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |

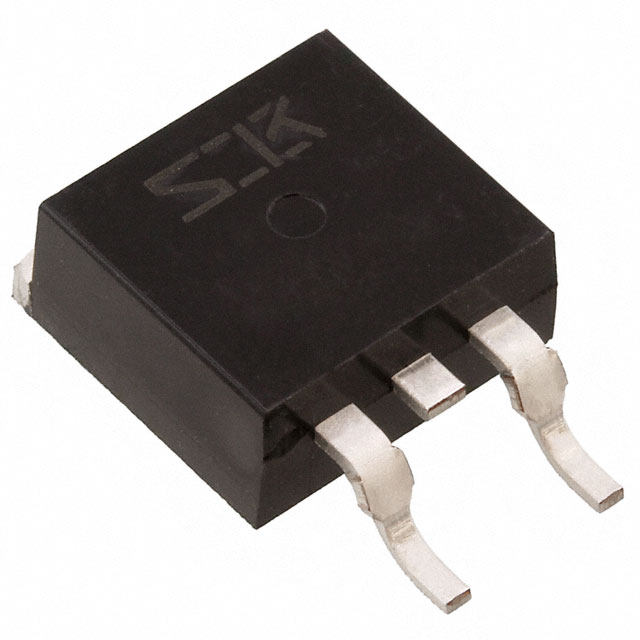

| Package / Case | D2PAK (2 Leads + Tab), TO-263AB, TO-263-3 |
| Power Dissipation (Max) | 135 W |
| Rds On (Max) @ Id, Vgs | 4.7 mOhm |
| Supplier Device Package | TO-263 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SKI06048
N-Channel 60 V 85A (Tc) 135W (Tc) Surface Mount TO-263
