88104-B
ActiveMISCO

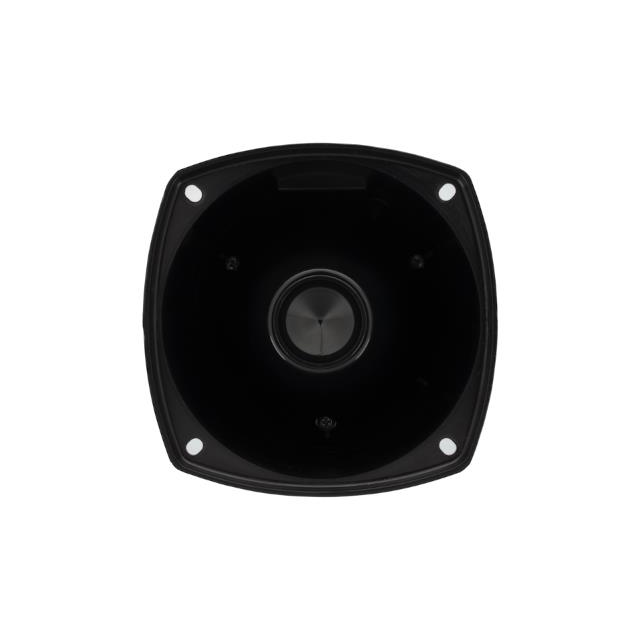

5.5" TWO-WAY HORN SPEAKER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
88104-B
ActiveMISCO
5.5" TWO-WAY HORN SPEAKER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 88104-B |
|---|---|
| Efficiency - dBA | 107 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 341 Hz |
| Frequency Range [Max] | 7 kHz |
| Frequency Range [Min] | 500 Hz |
| Height - Seated (Max) [Max] [z] | 114.3 mm |
| Height - Seated (Max) [Max] [z] | 114.3 mm |
| Impedance | 8 Ohms |
| Material - Cone | Cloth |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Max [Max] | 80 W |
| Shape | Square Frame, Round |
| Size / Dimension [x] | 5.5 in |
| Size / Dimension [x] | 139.7 mm |
| Size / Dimension [y] | 5.5 in |
| Size / Dimension [y] | 139.7 mm |
| Technology | Magnetic |
| Termination | Wire Leads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 75.34 | |
Description
General part information
88104-B
8 Ohms General Purpose Speaker 500 Hz ~ 7 kHz Top Round, Square Frame
