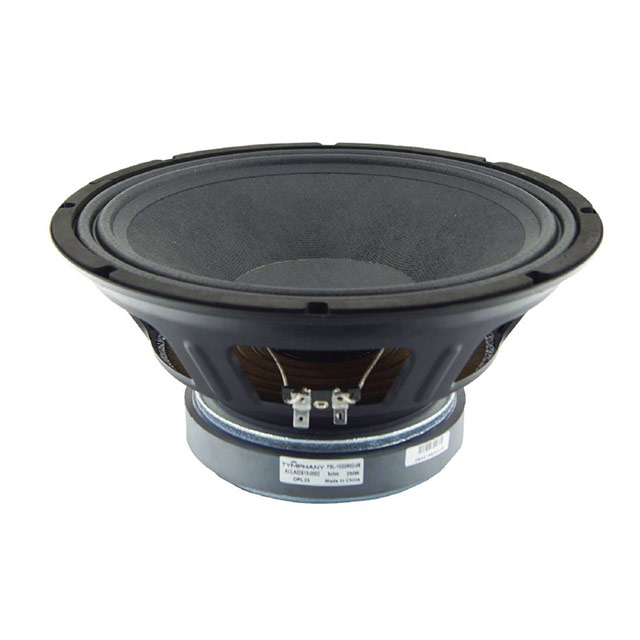

FSL-1020R02-08M
ActivePeerless by Tymphany
SPEAKR 7.98OHM 250W TOP 96.4DB
Deep-Dive with AI
Search across all available documentation for this part.
FSL-1020R02-08M
ActivePeerless by Tymphany
SPEAKR 7.98OHM 250W TOP 96.4DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FSL-1020R02-08M |
|---|---|
| Efficiency - dBA | 96.4 dBA |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 67.69 Hz |
| Frequency Range [Max] | 700 Hz |
| Frequency Range [Min] | 70 Hz |
| Height - Seated (Max) [Max] [z] | 0.311 in |
| Height - Seated (Max) [Max] [z] | 7.9 mm |
| Impedance | 7.98 Ohms |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Rated | 250 W |
| Shape | Round |
| Size / Dimension [diameter] | 257.1 mm |
| Size / Dimension [diameter] | 10.122 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Woofer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FSL-1020R02-08M
7.98 Ohms Woofer Speaker 250 W 70 Hz ~ 700 Hz Top Round
Documents
Technical documentation and resources
No documents available
