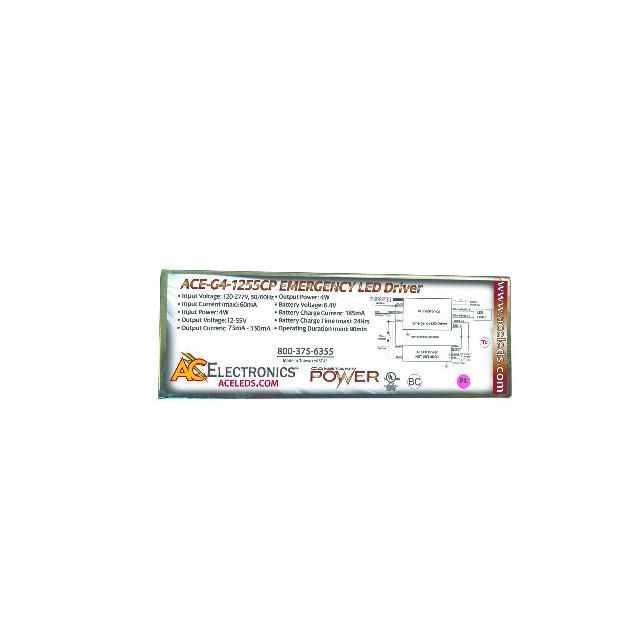

ACE-G4-1255CP
ActiveAC Electronics
4W SMALL CASE CONSTANT POWER EME
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACE-G4-1255CP
ActiveAC Electronics
4W SMALL CASE CONSTANT POWER EME
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACE-G4-1255CP |
|---|---|
| Approval Agency | cULus, FCC |
| Current - Output (Max) | 330 mA |
| Dimming | Analog |
| Features | OTP, OVP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 18 W |
| Ratings | IP30 |
| Size / Dimension [x] | 134.6 mm |
| Size / Dimension [x] | 5.3 in |
| Size / Dimension [y] | 43.2 mm |
| Size / Dimension [y] | 1.7 " |
| Size / Dimension [z] | 1 " |
| Size / Dimension [z] | 25.4 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Power |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 120 VAC |
| Voltage - Output [Max] | 55 V |
| Voltage - Output [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ACE-G4-1255CP
330mA 12 ~ 55V Constant Power LED Driver AC DC Converter Topology 1 Output
