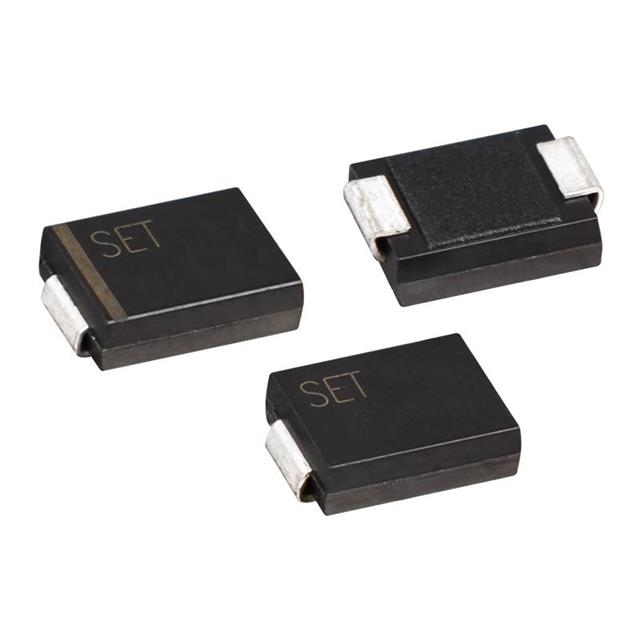

SMCJ24CA-AD
ActiveSETsafe | SETfuse
TRANSIENT VOLTAGE SUPPRESSION DI
Deep-Dive with AI
Search across all available documentation for this part.
SMCJ24CA-AD
ActiveSETsafe | SETfuse
TRANSIENT VOLTAGE SUPPRESSION DI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMCJ24CA-AD |
|---|---|
| Applications | Telecom |
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 38.6 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | SMC, DO-214AB |
| Power - Peak Pulse | 1.5 kW |
| Power - Peak Pulse | 1500 W |
| Power Line Protection | False |
| Supplier Device Package | DO-214AB |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 26.7 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 38.9 V |
| Voltage - Reverse Standoff (Typ) | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 0.54 | |
| 50 | $ 0.40 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.24 | |||
Description
General part information
SMCJ24CA-AD
38.9V Clamp 38.6A Ipp Tvs Diode Surface Mount DO-214AB
Documents
Technical documentation and resources
No documents available
