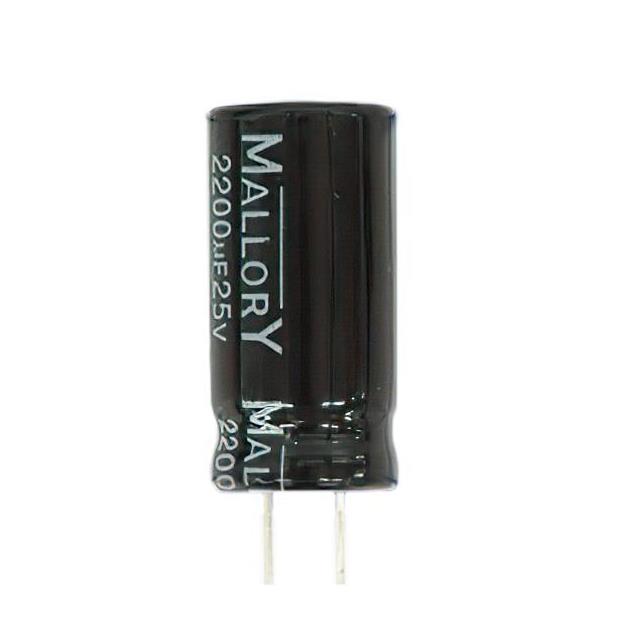

SEK222M025ST
ActiveMALLORY
CAP ALUM 2200UF 20% 25V RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
SEK222M025ST
ActiveMALLORY
CAP ALUM 2200UF 20% 25V RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SEK222M025ST |
|---|---|
| Applications | General Purpose |
| Capacitance | 2200 µF |
| ESR (Equivalent Series Resistance) | 110 mOhm |
| Height - Seated (Max) [Max] [z] | 1.102 in |
| Height - Seated (Max) [Max] [z] | 28 mm |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can |
| Polarization | Polar |
| Ripple Current @ High Frequency | 1.476 A |
| Ripple Current @ Low Frequency | 1.23 A |
| Size / Dimension [diameter] | 0.512 in |
| Size / Dimension [diameter] | 13 mm |
| Tolerance | 20 % |
| Voltage - Rated | 25 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SEK222M025ST
2200 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 110mOhm @ 120Hz 2000 Hrs @ 105°C
Documents
Technical documentation and resources
No documents available
