Technical Specifications
Parameters and characteristics for this part
| Specification | PZACF2KXD19261 |
|---|---|
| Applications | Military, Industrial |
| Cable Opening [Max] [custom] | 8.5 mm |
| Cable Opening [Max] [custom] | 0.335 in |
| Cable Opening [Min] [custom] | 0.043 in |
| Cable Opening [Min] [custom] | 1.1 mm |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 26 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert [Max] | 26 |
| Shell Size - Insert [Min] | 19 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 36.53 | |
| 31 | $ 34.70 | |||
| 71 | $ 31.05 | |||
Description
General part information
PZACF2KXD19261

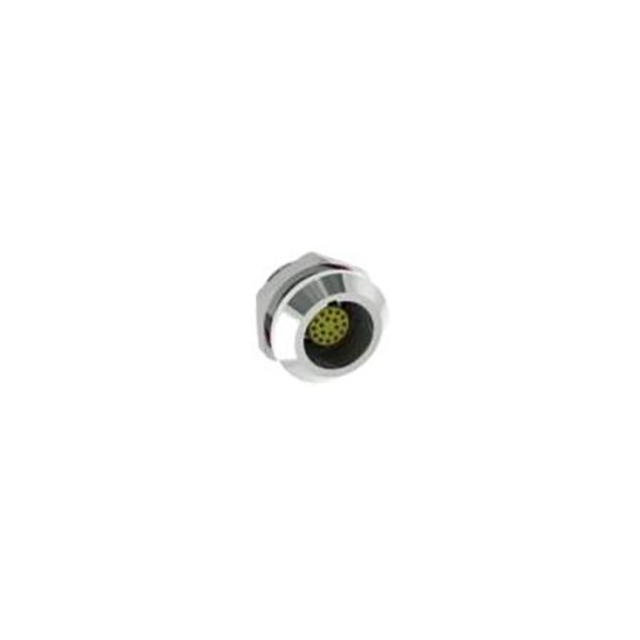

26 Position Circular Connector Receptacle, Female Sockets Solder Cup
