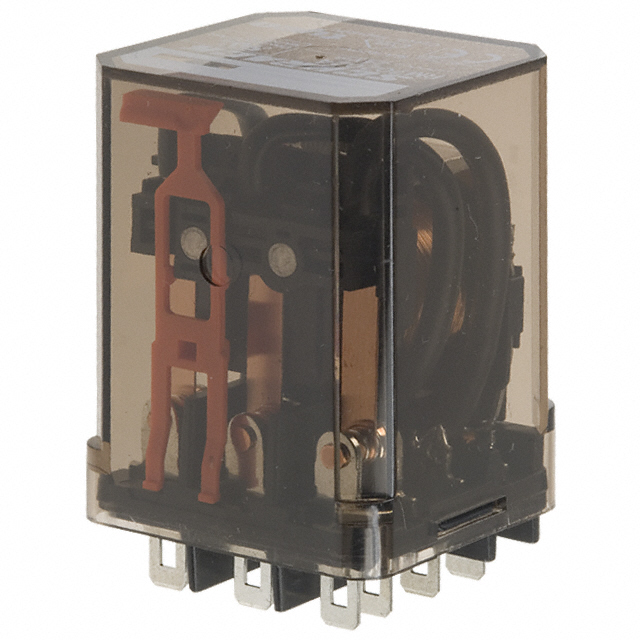

RM732024
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 3PDT 16A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RM732024
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 3PDT 16A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RM732024 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 70.8 mA |
| Coil Resistance | 345 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | 3PDT (3 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 7040 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -45 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 440 VAC |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RM732024
General Purpose Relay 3PDT (3 Form C) 24VDC Coil Socketable
