30-02615
ActiveTensility International Corp

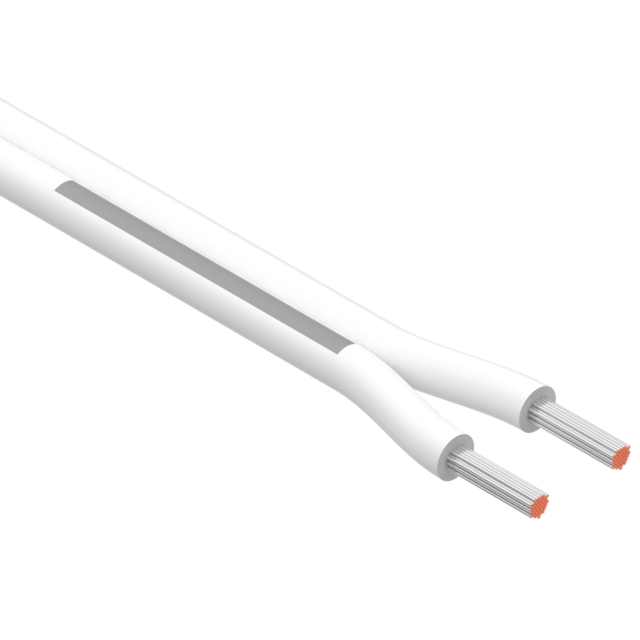

CABLE 2COND 14AWG WHITE
Deep-Dive with AI
Search across all available documentation for this part.
30-02615
ActiveTensility International Corp
CABLE 2COND 14AWG WHITE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 30-02615 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 41 strands |
| Conductor Strand [diameter] | 0.01 in |
| Jacket (Insulation) Diameter [diameter] | 5.99 mm |
| Jacket (Insulation) Diameter [diameter] | 0.236 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.0209 in |
| Jacket (Insulation) Thickness | 0.53 mm |
| Length | 502 ft |
| Length | 153 m |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -10 °C |
| Ratings | UL Style 2651 |
| Voltage | 300 V |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
30-02615
2 Conductor Multi-Conductor Cable White 14 AWG 502.0' (153.0m)
Documents
Technical documentation and resources
No documents available
