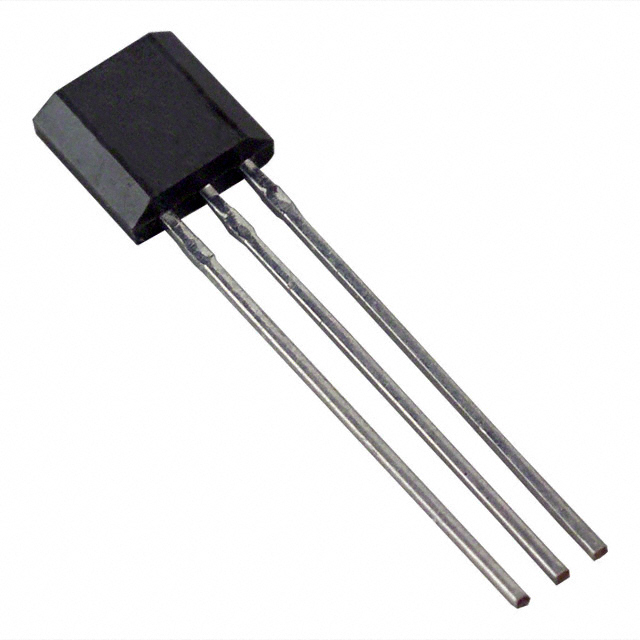

SS94B1A
ObsoleteHoneywell Sensing and Control EMEA
SENSOR HALL EFFECT ANALOG 3SIP
Deep-Dive with AI
Search across all available documentation for this part.
SS94B1A
ObsoleteHoneywell Sensing and Control EMEA
SENSOR HALL EFFECT ANALOG 3SIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SS94B1A |
|---|---|
| Axis | Single |
| Current - Output (Max) [Max] | 2 mA |
| Current - Supply (Max) [Max] | 11 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Output Type | Analog Voltage |
| Package / Case | 3-SIP |
| Sensing Range | 67 mT |
| Supplier Device Package | 3-SIP |
| Technology | Hall Effect |
| Voltage - Supply [Max] | 12 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SS94B1A
Hall Effect Sensor Single Axis 3-SIP
Documents
Technical documentation and resources
No documents available
