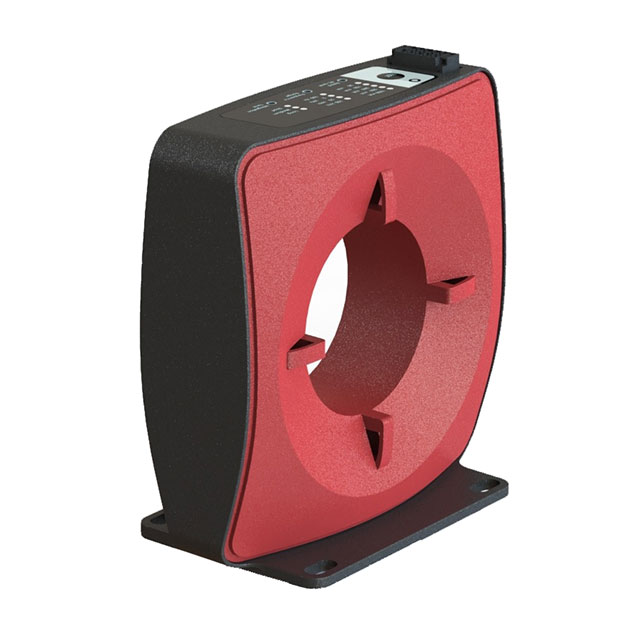

RCMH070IB+
ActiveDanisense A/S
TYPE B RESIDUAL CURRENT MONITOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RCMH070IB+
ActiveDanisense A/S
TYPE B RESIDUAL CURRENT MONITOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RCMH070IB+ |
|---|---|
| Current - Sensing | 2 A |
| For Measuring | AC/DC |
| Frequency | 100 kHz |
| Mounting Type | Chassis Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Output | Relay |
| Output [Max] | 20 mA |
| Output [Min] | 4 mA |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensor Type | Three Phase, AC Single Phase |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 753.08 | |
Description
General part information
RCMH070IB+
Current Sensor 2A 1 Channel AC Single Phase/Three Phase Bidirectional Module, Single Pass Through
