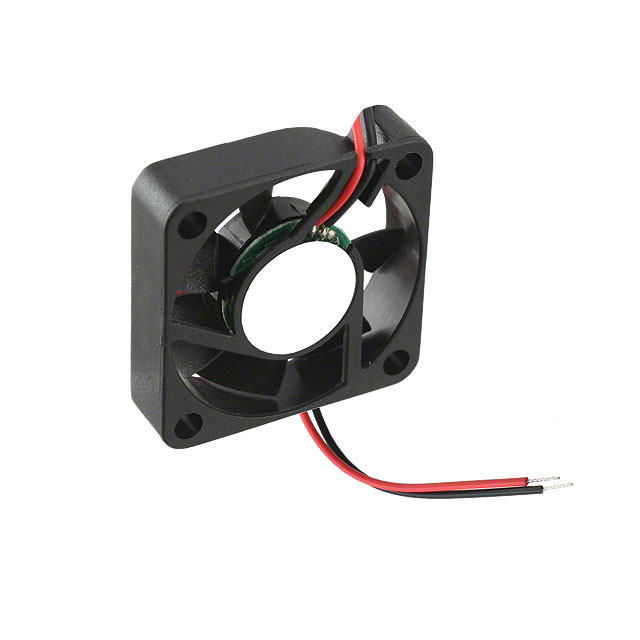

FAD1-04010DALW11
ObsoleteQualtek
FAN AXIAL 40X10MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
FAD1-04010DALW11
ObsoleteQualtek
FAN AXIAL 40X10MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FAD1-04010DALW11 |
|---|---|
| Air Flow | 0.118 m³/min |
| Air Flow | 4.2 CFM |
| Approval Agency | cURus, CE, TUV |
| Bearing Type | 1 Ball/1 Sleeve |
| Current Rating (Amps) | 30 mA |
| Fan Type | Tubeaxial |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 21 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 720 mW |
| RPM | 4200 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 0.06 in H2O |
| Static Pressure | 14.9 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Weight | 0.037 lb |
| Weight | 16.78 g |
| Width [y] | 10 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FAD1-04010DALW11
Fan Tubeaxial 24VDC Square - 40mm L x 40mm H 1 Ball/1 Sleeve 4.2 CFM (0.118m³/min) 2 Wire Leads
