100023373
ActiveTelegartner Inc
BNC JCK 90 BKHD CR/CR G1 Z50
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100023373
ActiveTelegartner Inc
BNC JCK 90 BKHD CR/CR G1 Z50
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 100023373 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 58C, 9907, RG-58, Belden 7806A, LMR-195 |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Right Angle, Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 37.59 | |
| 5 | $ 35.71 | |||
| 10 | $ 33.83 | |||
| 25 | $ 32.32 | |||
| 50 | $ 29.69 | |||
| 100 | $ 28.94 | |||
| 250 | $ 27.25 | |||
Description
General part information
100023373

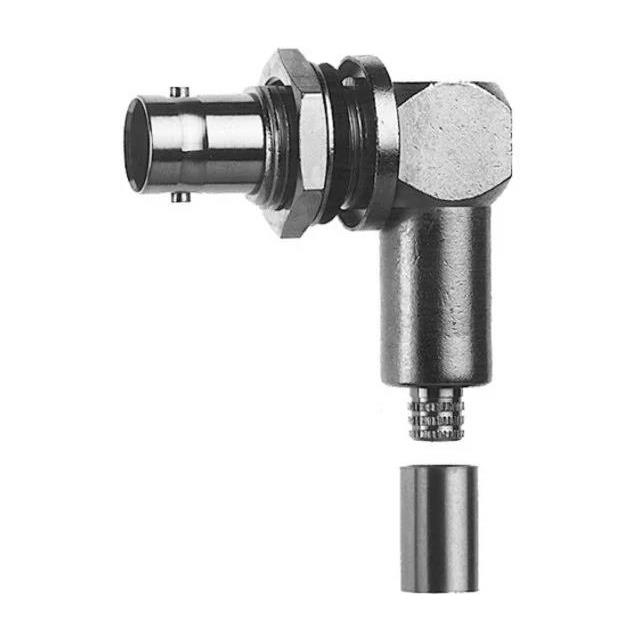

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Right Angle Crimp
