7200551
ActiveGES High Voltage
KS155/9.5-11 PTFE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7200551
ActiveGES High Voltage
KS155/9.5-11 PTFE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7200551 |
|---|---|
| Cable Opening [custom] | 14 mm |
| Cable Opening [custom] | 0.551 in |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 30 A |
| Features | High Voltage Connector, Strain Relief |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 1 |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 50000 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
7200551

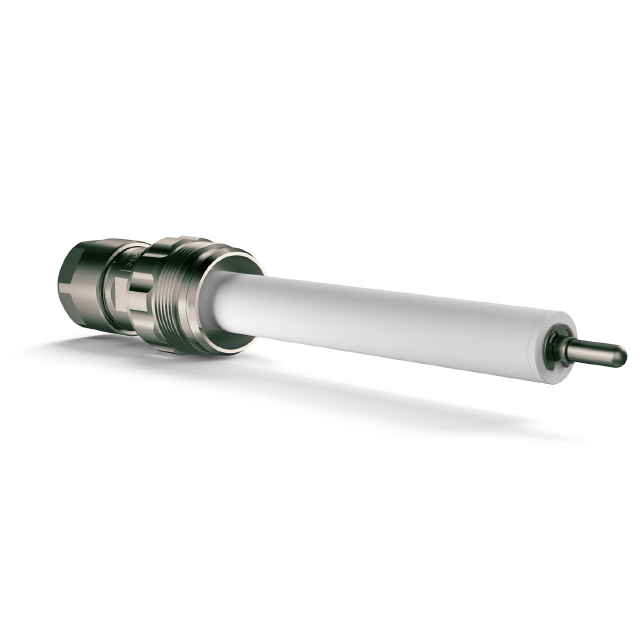

1 Position Circular Connector Plug, Male Pins Solder
Documents
Technical documentation and resources
