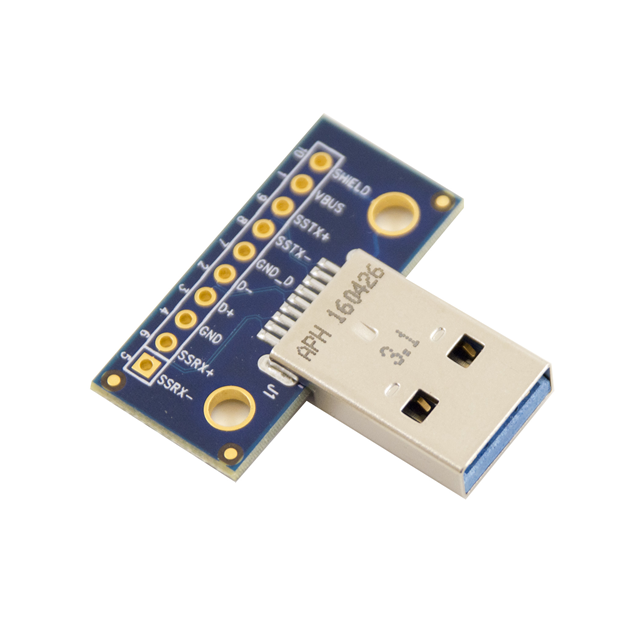

BRK-USB-AP-3.1
ActiveSaiko Systems Ltd.
USB 3.1 TYPE A MALE PLUG BREAKOU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BRK-USB-AP-3.1 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 0.0625 in |
| Board Thickness | 1.57 mm |
| Material | FR4 Epoxy Glass |
| Number of Positions | 10 |
| Package Accepted | USB - A 3.1 Plug |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Proto Board Type | Connector to Plated Through Hole |
| Size / Dimension [x] | 30.48 mm |
| Size / Dimension [x] | 1.2 " |
| Size / Dimension [y] | 0.56 in |
| Size / Dimension [y] | 14.22 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.08 | |
| 5 | $ 6.96 | |||
| 10 | $ 6.56 | |||
| 25 | $ 6.09 | |||
| 50 | $ 5.79 | |||
| 150 | $ 5.36 | |||
| 300 | $ 5.13 | |||
| 600 | $ 4.92 | |||
| 1050 | $ 4.77 | |||
Description
General part information
BRK-USB-AP-3.1
USB 3.1 TYPE A MALE PLUG BREAKOU
