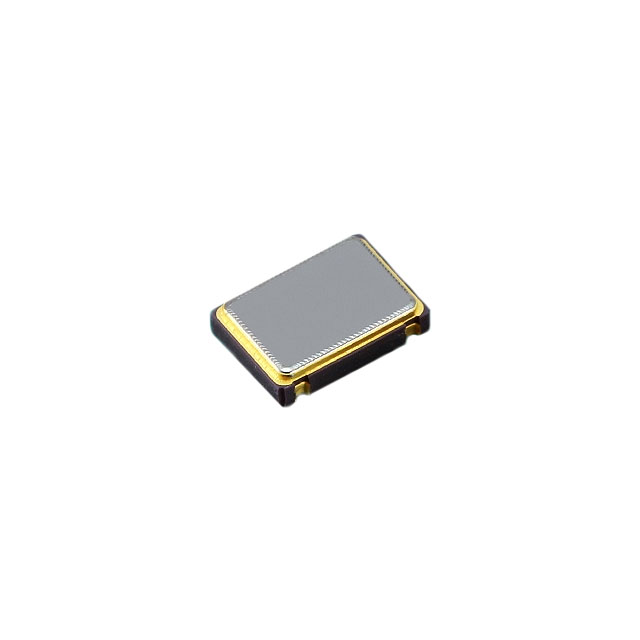

EC2645TTS-27.000M TR
ActiveEcliptek
STANDARD CLOCK OSCILLATOR 27.000
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EC2645TTS-27.000M TR
ActiveEcliptek
STANDARD CLOCK OSCILLATOR 27.000
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EC2645TTS-27.000M TR |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 10 ÁA |
| Current - Supply (Max) [Max] | 10 mA |
| Frequency | 27 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 0.071 " |
| Height - Seated (Max) [Max] | 1.8 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C |
| Output | LVCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.80 | |
| 10 | $ 1.55 | |||
| 50 | $ 1.40 | |||
| 100 | $ 1.34 | |||
| 500 | $ 1.21 | |||
| Digi-Reel® | 1 | $ 1.80 | ||
| 10 | $ 1.55 | |||
| 50 | $ 1.40 | |||
| 100 | $ 1.34 | |||
| 500 | $ 1.21 | |||
| Tape & Reel (TR) | 1000 | $ 1.16 | ||
| 2000 | $ 1.11 | |||
| 3000 | $ 1.08 | |||
| 5000 | $ 1.04 | |||
| 7000 | $ 1.02 | |||
| 10000 | $ 1.00 | |||
Description
General part information
EC2645TTS-27.000M TR
27 MHz XO (Standard) LVCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
