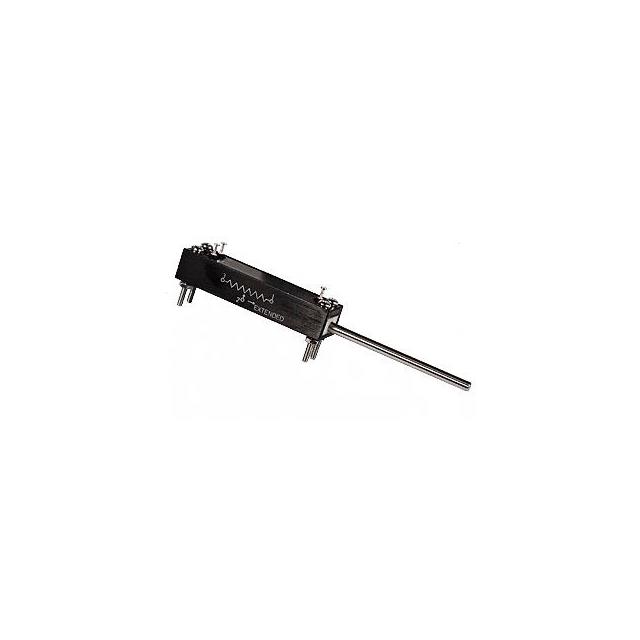

LCP12S-50-10K
ActiveETI Systems
LINEAR POT 10K OHM 0.7W PLASTIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCP12S-50-10K
ActiveETI Systems
LINEAR POT 10K OHM 0.7W PLASTIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCP12S-50-10K |
|---|---|
| Actuator Diameter [diameter] | 0.125 in |
| Actuator Diameter [diameter] | 3.18 mm |
| Actuator Length [z] | 19.05 mm |
| Actuator Length [z] | 0.75 in |
| Actuator Type | Round |
| Adjustment Type | Side Adjustment |
| Built in Switch | False |
| Mounting Type | Through Hole |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.7 W |
| Resistance (Ohms) | 10k |
| Resistive Material | Conductive Plastic |
| Size - Body [x] | 3 " |
| Size - Body [x] | 76.2 mm |
| Size - Body [y] | 12.5 mm |
| Size - Body [y] | 0.492 in |
| Taper | Linear |
| Temperature Coefficient | 400 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 192.61 | |
| 10 | $ 173.35 | |||
Description
General part information
LCP12S-50-10K
10k Ohm 1 Gang Linear Through Hole Potentiometer 1.0 Turns Conductive Plastic 0.7W PC Pins
