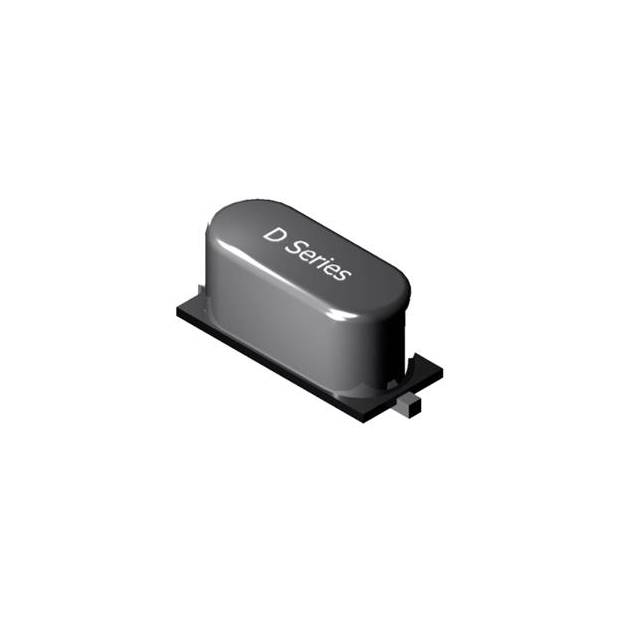

DF18CC1-20.000MHZ-T
ActiveMMD
CRYSTAL 20.0000MHZ 18PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF18CC1-20.000MHZ-T
ActiveMMD
CRYSTAL 20.0000MHZ 18PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF18CC1-20.000MHZ-T |
|---|---|
| ESR (Equivalent Series Resistance) | 30 Ohm |
| Frequency | 20 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 15 ppm |
| Height - Seated (Max) | 4.5 mm |
| Height - Seated (Max) [Max] | 0.177 " |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | HC-49/US |
| Size / Dimension [x] | 0.461 " |
| Size / Dimension [x] | 11.7 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DF18CC1-20.000MHZ-T
20 MHz ±15ppm Crystal 18pF 30 Ohms HC-49/US
