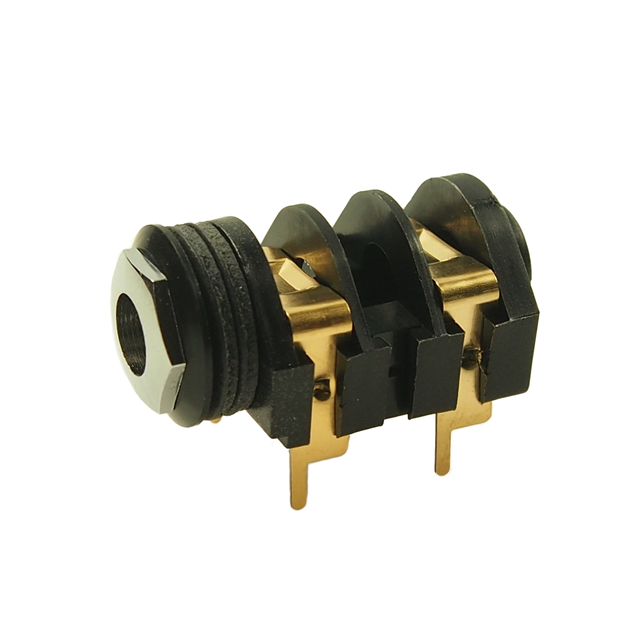

CL1308GA
ActiveCLIFF Electronic Components Ltd
S4 BNB PCA GOLD ASSEMBLED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CL1308GA
ActiveCLIFF Electronic Components Ltd
S4 BNB PCA GOLD ASSEMBLED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CL1308GA |
|---|---|
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Nickel Silver Alloy |
| Contact Material - Plating [custom] | Gold |
| Current Rating (Amps) | 5 A |
| Gender | Female |
| Housing Material | Polyamide (PA), Nylon |
| Internal Switch(s) | Two Switches |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions/Contacts | 4 Contacts, 2 Conductors |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.51 | |
| 10 | $ 2.68 | |||
| 25 | $ 2.42 | |||
| 50 | $ 2.24 | |||
| 100 | $ 2.07 | |||
| 250 | $ 1.88 | |||
| 500 | $ 1.75 | |||
| 1000 | $ 1.63 | |||
| 2500 | $ 1.49 | |||
Description
General part information
CL1308GA
6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder
