104990847
ActiveSeeed
2.13 FLEXIBLE MONOCHROME ELINK E
Deep-Dive with AI
Search across all available documentation for this part.
104990847
ActiveSeeed
2.13 FLEXIBLE MONOCHROME ELINK E
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 104990847 |
|---|---|
| Background Color | White |
| Backlight | Without Backlight |
| Controller Type | STM32 |
| Diagonal Screen Size | 2.13 in |
| Diagonal Screen Size | 54.1 mm |
| Display Mode | Reflective |
| Display Type | Monochrome |
| Dot Pitch [x] | 0.23 mm |
| Dot Pitch [y] | 0.23 mm |
| Dot Pixels [x] | 212 |
| Dot Pixels [y] | 104 |
| Graphics Color | Black |
| Interface | SPI |
| Viewing Area [x] | 48.55 mm |
| Viewing Area [y] | 23.71 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 11.90 | |
Description
General part information
104990847

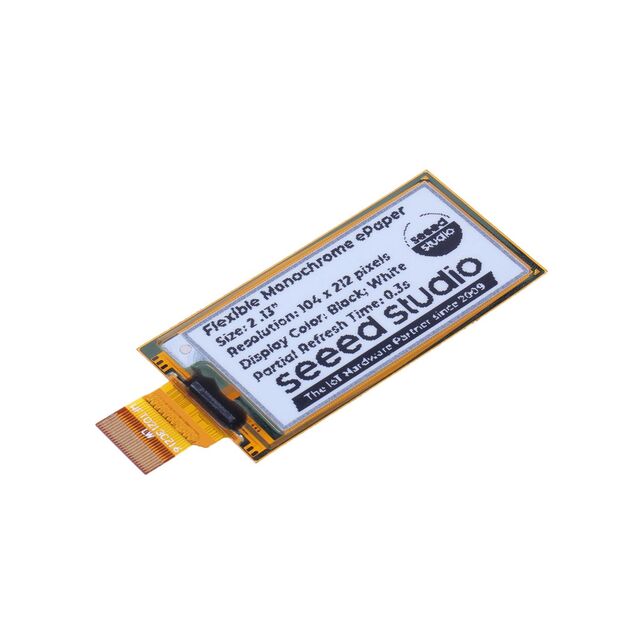

Graphic LCD Display Module Reflective Black Monochrome SPI 2.13" (54.10mm) 212 x 104
