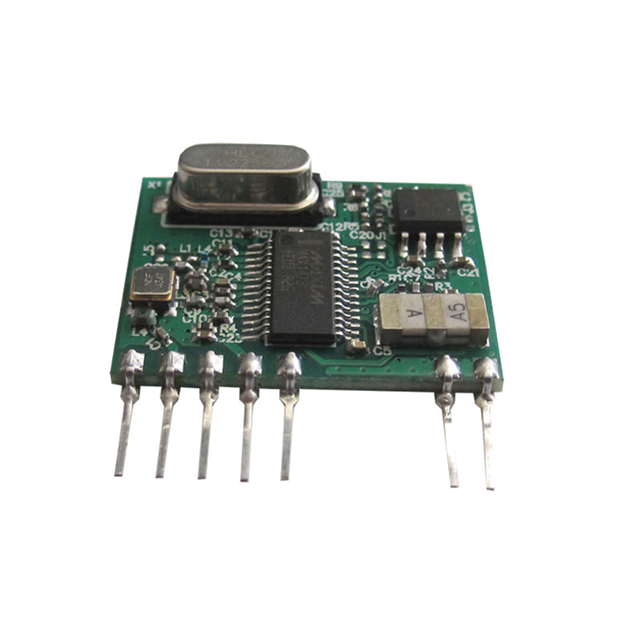

RCASK3-434-CH
ActiveRadioControlli
433.92MHZ AM RECEIVER MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RCASK3-434-CH
ActiveRadioControlli
433.92MHZ AM RECEIVER MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RCASK3-434-CH |
|---|---|
| Applications | AM Radio Receiver |
| Current - Receiving | 9 mA |
| Frequency | 433.92 MHz |
| Modulation or Protocol | AM |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 10-SIP Module |
| Package / Case | 7 Leads |
| Sensitivity | -113 dBm |
| Supplier Device Package | 10-SIP |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 4 | $ 23.00 | |
| 12 | $ 15.00 | |||
| 20 | $ 12.00 | |||
Description
General part information
RCASK3-434-CH
- RF Receiver AM 433.92MHz -113dBm 4.8kbps 10-SIP
Documents
Technical documentation and resources
