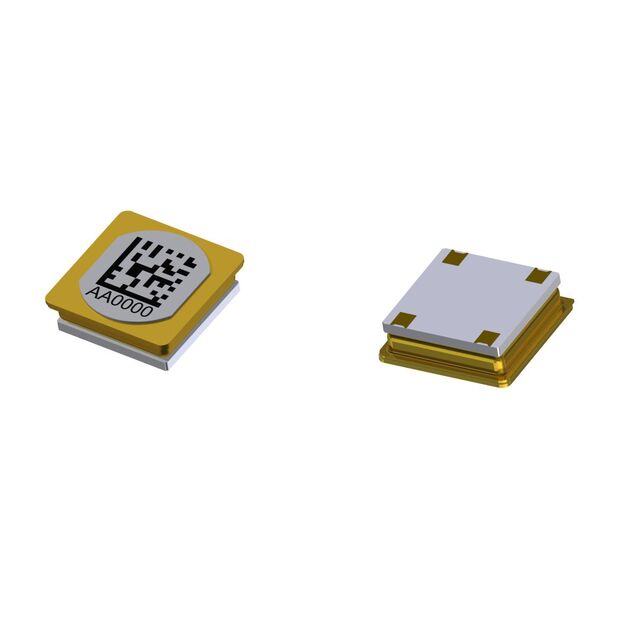

CC9012-80
ActiveQuantic Croven
80 MHZ, SC CUT, 3RD OT, SM1 HOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CC9012-80
ActiveQuantic Croven
80 MHZ, SC CUT, 3RD OT, SM1 HOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CC9012-80 |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Frequency | 80 MHz |
| Frequency Tolerance | 4 ppm |
| Height - Seated (Max) [Max] [z] | 0.094 " |
| Height - Seated (Max) [Max] [z] | 2.4 mm |
| Mounting Type | Surface Mount |
| Operating Mode | 3rd Overtone |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.32 in |
| Size / Dimension [x] | 8.13 mm |
| Size / Dimension [y] | 8.13 mm |
| Size / Dimension [y] | 0.32 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 118.30 | |
| 30 | $ 98.70 | |||
| 50 | $ 79.50 | |||
| 100 | $ 65.70 | |||
| 200 | $ 62.75 | |||
| 250 | $ 61.70 | |||
Description
General part information
CC9012-80
80 MHz ±4ppm Crystal Series 100 Ohms 4-SMD, No Lead
