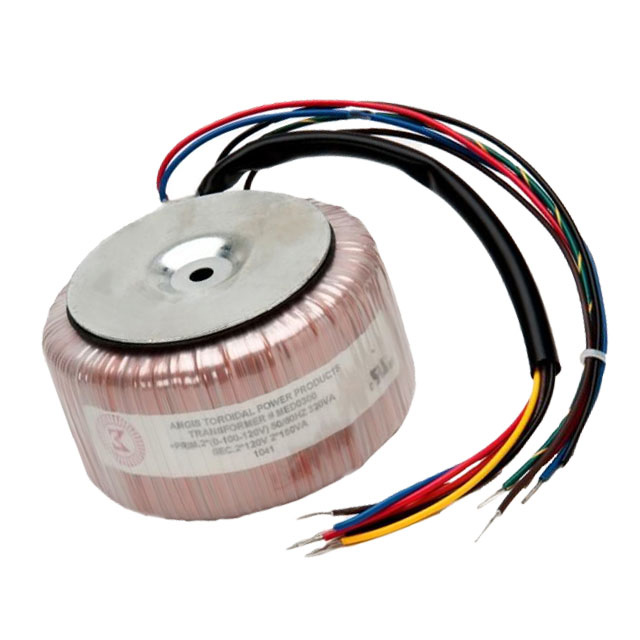

XF-01000-2030
ActiveAmgis, LLC
PWR XFMR TOROIDAL 1000VA CHAS MT
Deep-Dive with AI
Search across all available documentation for this part.
XF-01000-2030
ActiveAmgis, LLC
PWR XFMR TOROIDAL 1000VA CHAS MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XF-01000-2030 |
|---|---|
| Center Tap | False |
| Current - Output (Max) [custom] | 33.32 A |
| Current - Output (Max) [custom] | 16.66 A |
| Height - Seated (Max) [Max] [z] | 83.82 mm |
| Mounting Type | Chassis Mount |
| Power - Max [Max] | 1000 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension [diameter] | 167.64 mm |
| Termination Style | Wire Leads |
| Type | Toroidal |
| Voltage - Isolation | 4000 Vrms |
| Voltage - Secondary (Full Load) | 234 V, 117 V |
| Weight | 16 lbs |
| Weight | 7.3 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 292.70 | |
Description
General part information
XF-01000-2030
PWR XFMR TOROIDAL 1000VA CHAS MT
