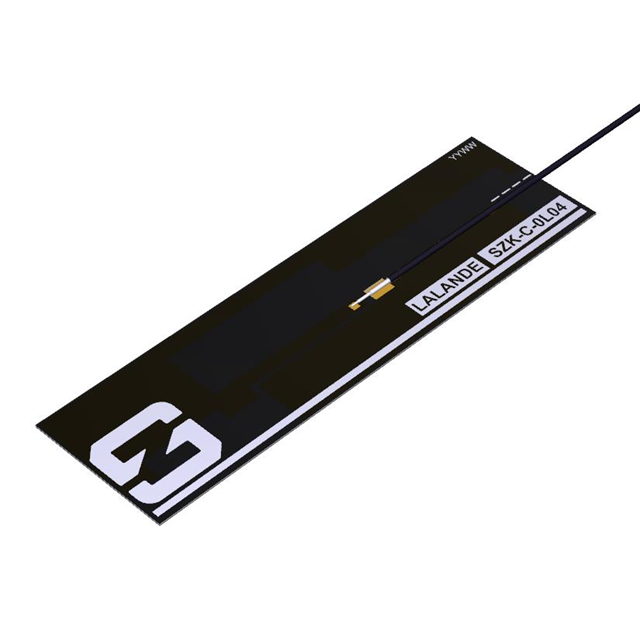

SZK-C-0L04
ActiveSynzen
4G LTE ANT FLAT PATCH IPEX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SZK-C-0L04
ActiveSynzen
4G LTE ANT FLAT PATCH IPEX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SZK-C-0L04 |
|---|---|
| Applications | 4G, EDGE, DCS, GPRS, CDMA, IMT, 3G, GSM, HSPA, LTE, UMTS, PCS, WCDMA |
| Frequency (Center/Band) | 1.94 GHz, 2.595 GHz, 829 MHz, 2.35 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 798 MHz, 2.69 GHz, 2.17 GHz, 960 MHz, 2.4 GHz |
| Frequency Range [Min] | 1.71 GHz, 2.3 GHz, 824 MHz, 698 MHz, 2.5 GHz |
| Gain | 3.5 dBi, 2.9 dBi, 2.6 dBi, 2.3 dBi |
| Number of Bands [custom] | 5 |
| Return Loss | -13.8 dB, -6 dB, -11.3 dB, -11.4 dB |
| RF Family/Standard | Cellular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 4.80 | |
| 20 | $ 4.65 | |||
| 100 | $ 4.25 | |||
| 250 | $ 3.80 | |||
| 500 | $ 3.35 | |||
| 1000 | $ 2.90 | |||
| 2000 | $ 2.79 | |||
| 5000 | $ 2.55 | |||
Description
General part information
SZK-C-0L04
RF ANTENNA 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA Flat Patch Adhesive
