BZT52C5V6
ActiveNextGen Components

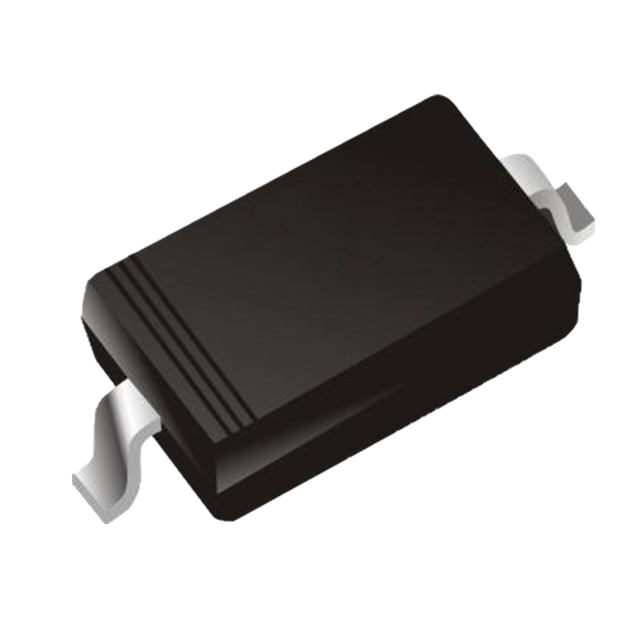

DIODE ZENER 5.6V 0.5W SOD-123
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BZT52C5V6
ActiveNextGen Components
DIODE ZENER 5.6V 0.5W SOD-123
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BZT52C5V6 |
|---|---|
| Current - Reverse Leakage @ Vr | 1 µA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | SOD-123 |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | SOD-123 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 900 mV |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 12000 | $ 0.06 | |
Description
General part information
BZT52C5V6
Zener Diode 5.6 V 500 mW ±5% Surface Mount SOD-123
