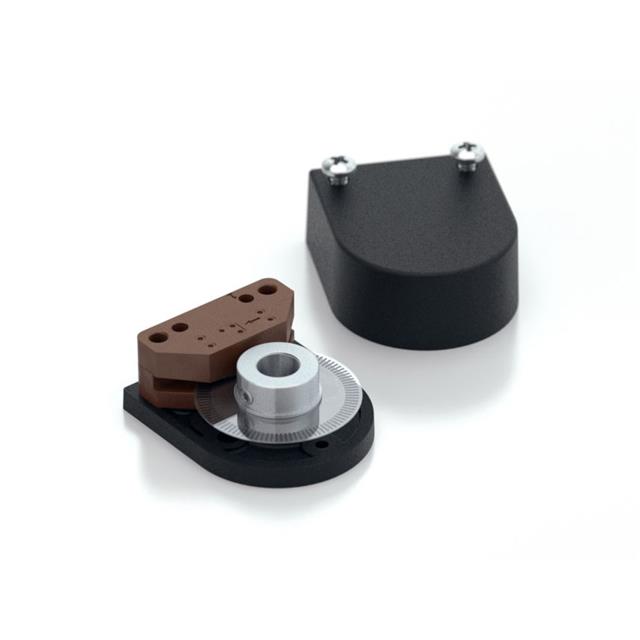

E2-1000-197-IE-D-D-3
ActiveUS Digital
E2 OPTICAL KIT ENCODER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E2-1000-197-IE-D-D-3
ActiveUS Digital
E2 OPTICAL KIT ENCODER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | E2-1000-197-IE-D-D-3 |
|---|---|
| Built in Switch | False |
| Detent | False |
| Encoder Type | Incremental |
| Mounting Type | Surface Mount |
| Orientation | User Selectable, Horizontal |
| Output Type | Quadrature with Index (Incremental) |
| Pulses per Revolution | 1000 |
| Termination Style | Connector |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 96.66 | |
Description
General part information
E2-1000-197-IE-D-D-3
Rotary Encoder Incremental 1000 Quadrature with Index (Incremental) User Selectable
