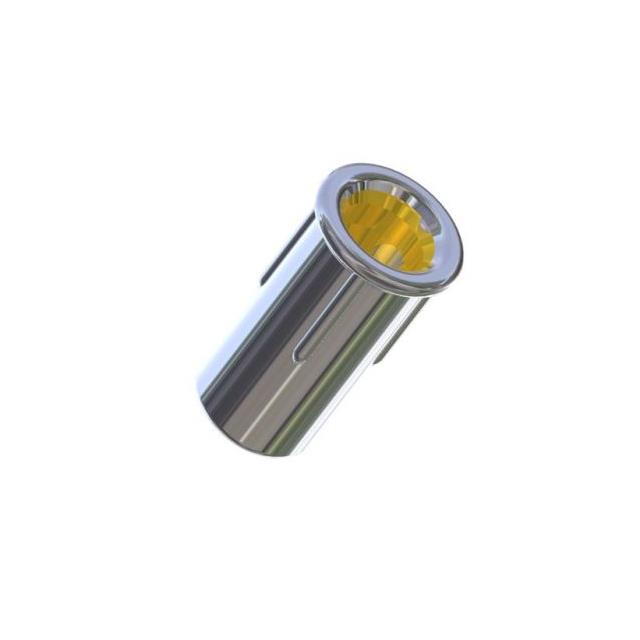

450-1804-01-03-00
ActiveCAMBION
SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
450-1804-01-03-00
ActiveCAMBION
SOCKET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 450-1804-01-03-00 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 0.062 in |
| Accepts Pin Diameter [Max] [diameter] | 1.57 mm |
| Accepts Pin Diameter [Min] [diameter] | 0.06 in |
| Accepts Pin Diameter [Min] [diameter] | 1.52 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Features | Closed Bottom |
| Flange Diameter [diameter] | 0.12 in |
| Flange Diameter [diameter] | 3.05 mm |
| Length - Overall [x] | 0.213 in |
| Length - Overall [x] | 5.41 mm |
| Mounting Hole Diameter [diameter] | 0.102 in |
| Mounting Hole Diameter [diameter] | 2.59 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Socket Depth | 0.2 in |
| Socket Depth | 5.08 mm |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
450-1804-01-03-00
Pin Receptacle Connector 0.060" ~ 0.062" (1.52mm ~ 1.57mm) Press-Fit
