SB AA11/TC
ActiveEagle Picher
BATTERY LITHIUM 3.6V AA
Deep-Dive with AI
Search across all available documentation for this part.
SB AA11/TC
ActiveEagle Picher
BATTERY LITHIUM 3.6V AA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SB AA11/TC |
|---|---|
| Battery Cell Size | AA |
| Battery Chemistry | Lithium Thionyl Chloride |
| Capacity | 2.4 Ah |
| Shelf Life Start | Date of Manufacture |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension [diameter] | 0.56 " |
| Size / Dimension [diameter] | 14.3 mm |
| Size / Dimension [z] | 1.99 in |
| Size / Dimension [z] | 50.5 mm |
| Storage/Refrigeration Temperature | 68 °F |
| Storage/Refrigeration Temperature | 20 °C |
| Voltage - Rated | 3.6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SB AA11/TC

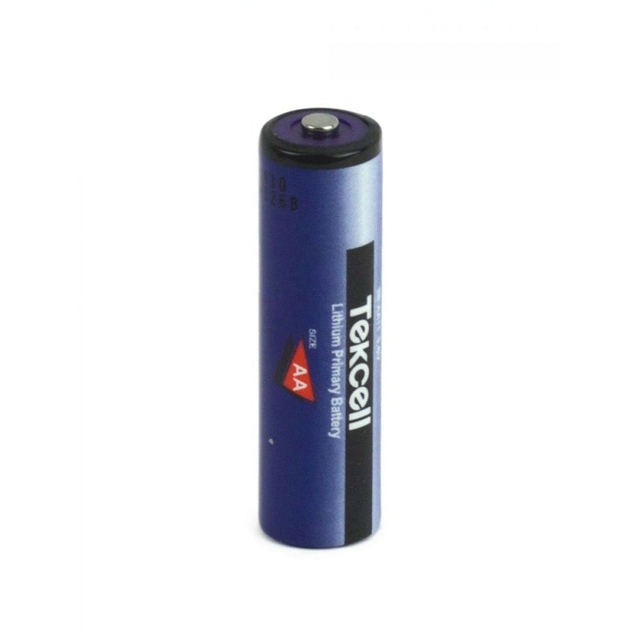

AA Lithium Thionyl Chloride 3.6 V Battery Non-Rechargeable (Primary)
Documents
Technical documentation and resources
No documents available
